TYPHON NAGA 4.0 - 4 Ton Yanmar Diesel Mini Excavator with Steel Tracks, Enclosed A/C Cab and Zero Tail Swing

TYPHON NAGA 4.0 - 4 Ton Yanmar Diesel Mini Excavator with Steel Tracks, Enclosed A/C Cab and Zero Tail Swing

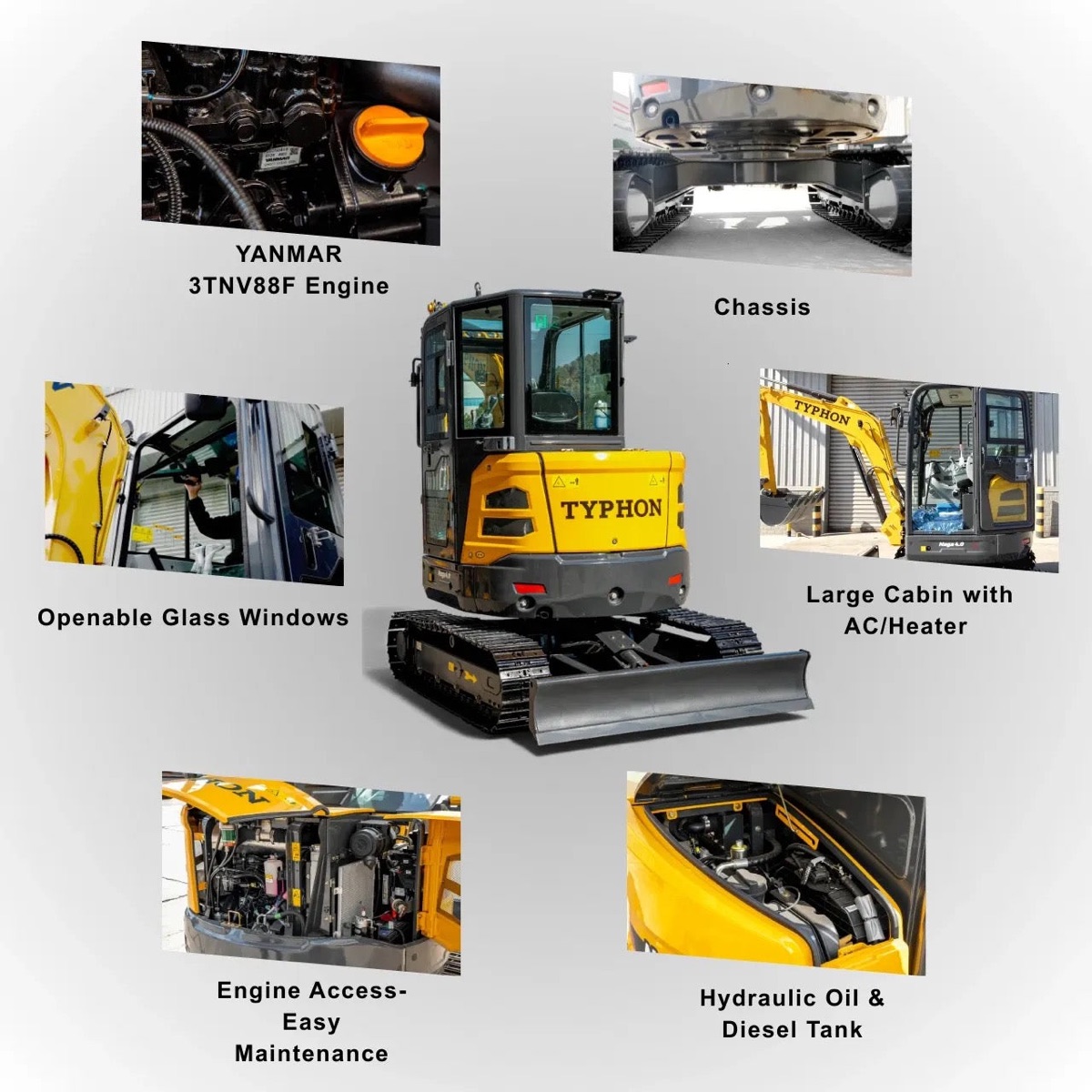

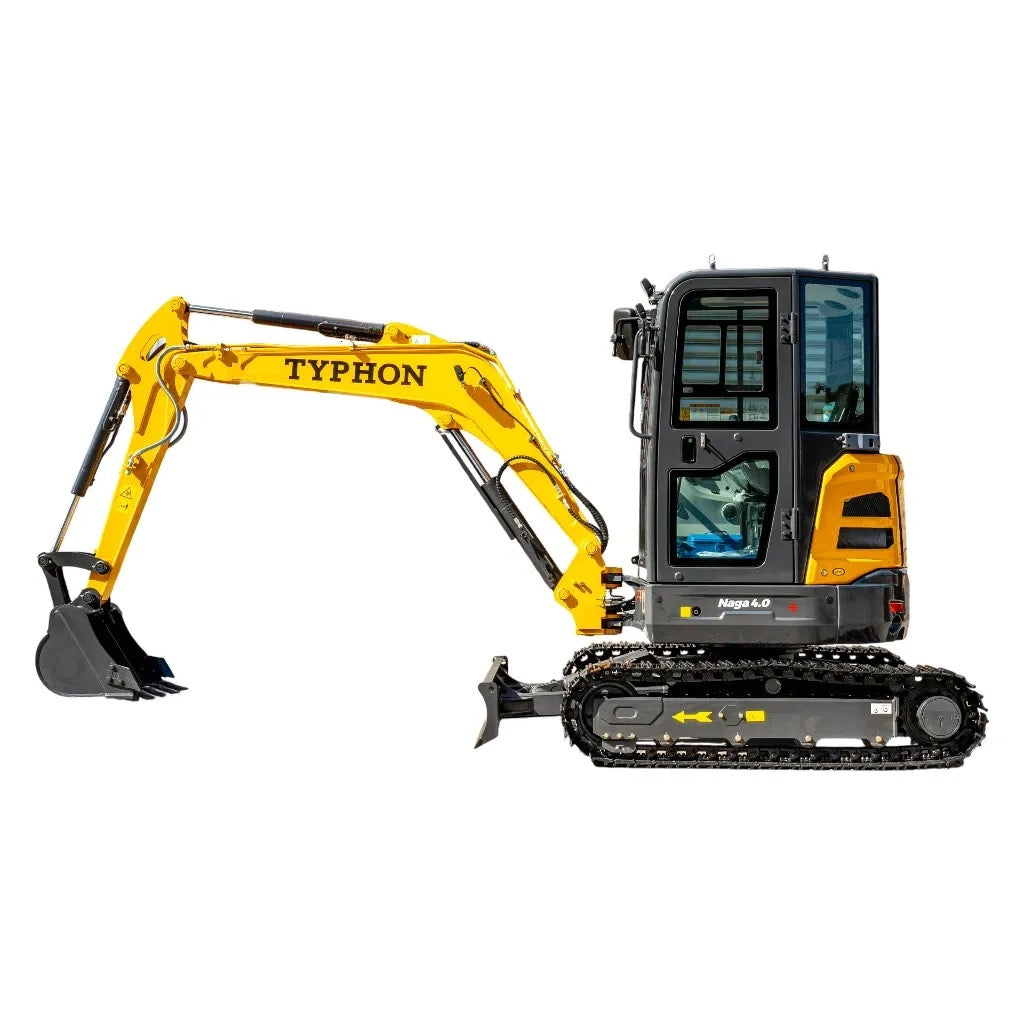

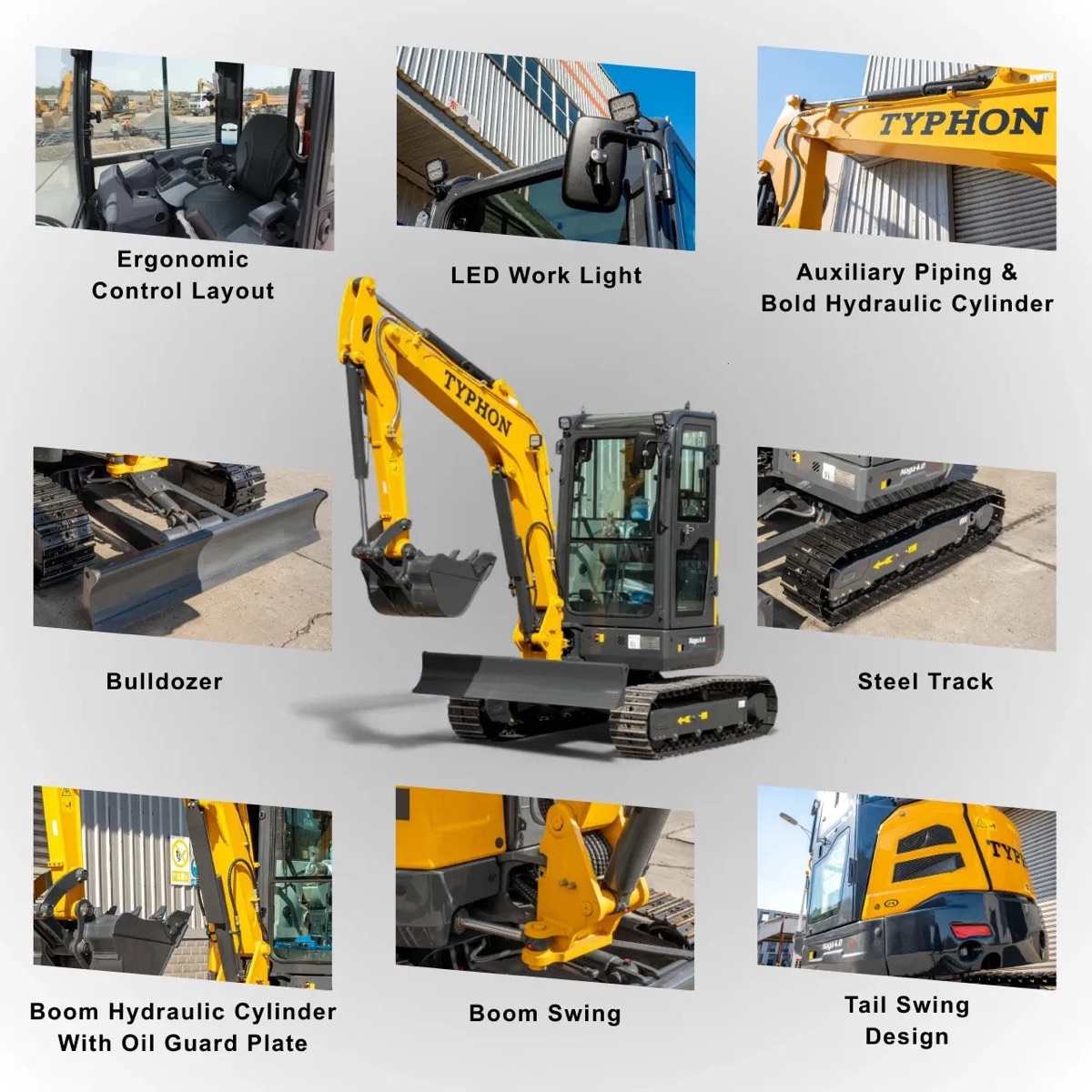

The TYPHON NAGA 4.0 is a 4 ton mini excavator built for the hardest version of every job: demolition, rock and daily commercial digging. It rides on heavy-duty steel tracks that outlast rubber in harsh conditions, swings its rear inside the track width with a zero tail swing design (860 mm tail swing radius, 360 degree rotation), and puts down a massive 30.4 kN bucket breakout force. Power comes from the world-renowned Yanmar 3TNV88F 3-cylinder diesel - 18.2 kW (24.4 HP) at 2,200 rpm, EPA Tier 4 Final and EU Stage V compliant. A 55 degree left/right boom swing digs flush along walls and road edges without repositioning, and the enclosed cab with air conditioning and heater, ISO/SAE selectable controls and a 7 inch touchscreen display keep the operator productive through full shifts. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states. What your order includes Brand-new TYPHON NAGA 4.0 4 ton mini excavator with enclosed A/C and heater cab Yanmar 3TNV88F 3-cylinder direct-injection diesel, 18.2 kW (24.4 HP), EPA Tier 4 Final / EU Stage V Heavy-duty steel tracks and dozer/trenching blade (fitted) 0.12 m3 / 650 mm standard digging bucket Auxiliary hydraulic circuit (96.8 L/min) with three-way stop valve for breakers, augers and thumbs 7 inch touchscreen display, ISO/SAE selectable pilot controls, suspension seat LED work lights, mirrors, openable front glass window Tool box, fire extinguisher, window-break and seatbelt-cutter tool, digital manual Fully crated heavy-item freight preparation for U.S. delivery Eight reasons this machine wins Steel tracks from the factory. Demolition, rebar, rock and stump fields destroy rubber tracks. Steel shrugs them off and delivers better traction and service life. Yanmar 3TNV88F diesel. The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer. 30.4 kN bucket force. Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it - real production digging in tough ground. Zero tail swing. The rear stays inside the track width through a full 360 degree rotation - safe beside walls, houses and live traffic. 55 degree boom swing both ways. Offset digging along foundations, fences and road edges without repositioning the tracks. Enclosed A/C and heater cab. Openable front glass, suspension seat and low-effort pilot joysticks with ISO/SAE pattern selection for any operator. 7 inch smart touchscreen. Engine data, hydraulic status, working hours, fault codes, maintenance reminders and control pattern selection in one display. Auxiliary hydraulics ready. A 96.8 L/min circuit and three-way stop valve run breakers, augers and thumb attachments out of the crate. In the field Demolition and concrete - steel tracks and auxiliary flow for a hydraulic breaker. Urban and confined-site excavation - zero tail swing beside structures and traffic. Utility and drainage trenching - water, sewer, conduit and French drains in tough soil. Foundations and footings - boom swing digs flush against walls and forms. Farm and ranch - fence lines, ponds, rock picking and heavy clearing on durable tracks. Roadside and municipal work - offset digging along curbs and edges, 30 degree gradeability. Specifications Basic Class 4.0 ton mini excavator Overall dimensions 4,880 mm L x 1,740 mm W x 2,550 mm H Track type Heavy-duty steel tracks Track length / gauge 2,155 mm / 1,440 mm Tail swing Zero tail swing design, 860 mm tail swing radius, 360 degree rotation Gradeability 30 degrees Working range Bucket digging force 30.4 kN Arm digging force 18.2 kN Bucket 0.12 m3 capacity, 650 mm width Boom swing 55 degrees left / 55 degrees right Swing speed 0 - 9 rpm Travel speed 2.4 / 4.4 km/h (2-speed) Engine Engine Yanmar 3TNV88F, 3-cylinder direct-injection diesel, water-cooled Rated power 18.2 kW (24.4 HP) at 2,200 rpm Displacement 1.642 L Emission standard EPA Tier 4 Final and EU Stage V Fuel tank 50 L Engine oil 6.7 L Hydraulics Main pump Plunger pump Auxiliary circuit 96.8 L/min standard, three-way stop valve for added functions Hydraulic oil tank 40 L Cab and features Cab Enclosed cab with air conditioning and heater, openable front glass window Controls ISO/SAE selectable pilot joysticks, suspension seat Monitoring 7 inch touchscreen: engine data, hydraulics, hours, fault codes, maintenance reminders Safety and lighting LED work lights, LED alarms, mirrors, fire extinguisher, window-break tool The working diagrams, engine sheet and full feature overview are in the product photos above.

• ✓Steel tracks from the factory Demolition, rebar, rock and stump fields destroy rubber tracks. Steel shrugs them off and delivers better traction and service life.

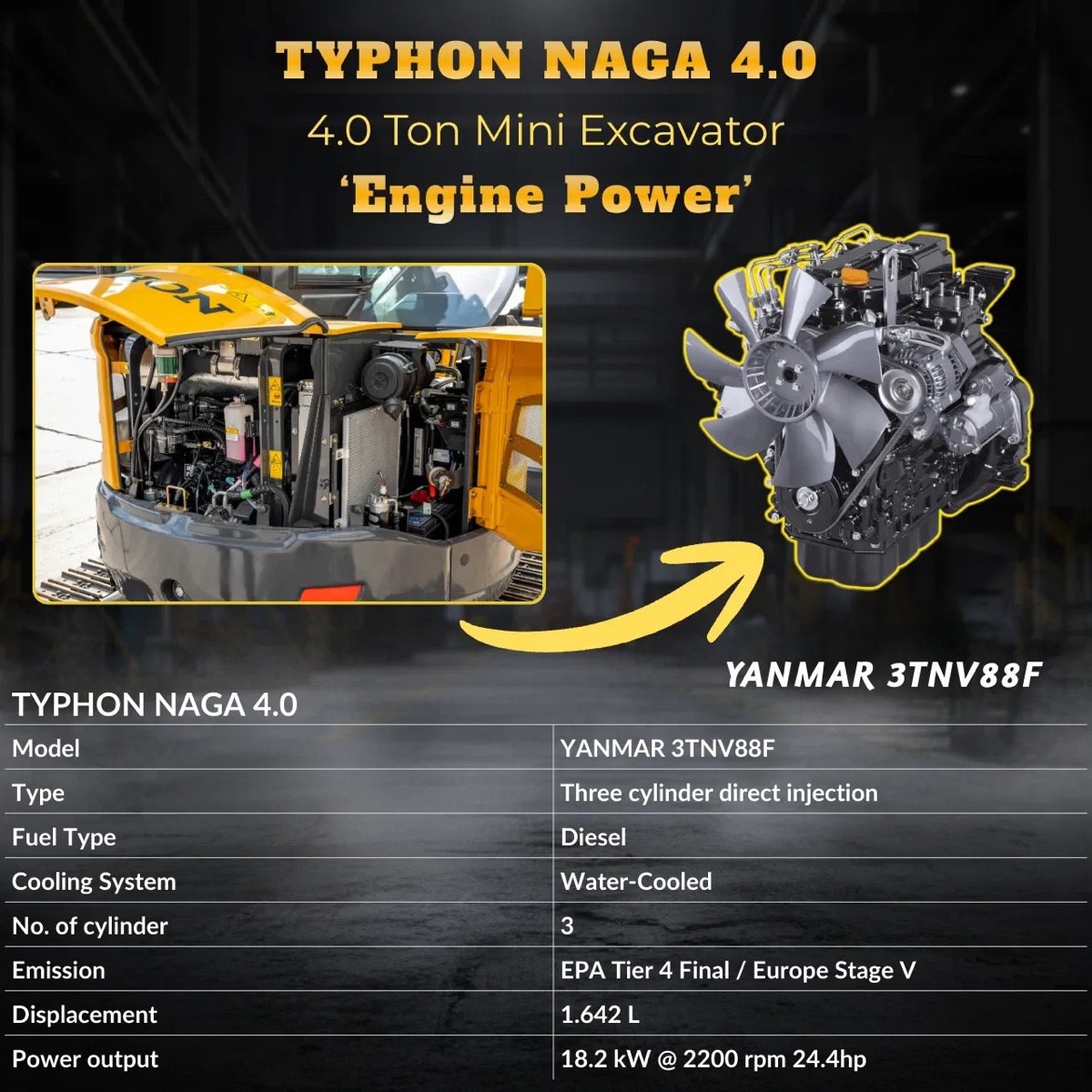

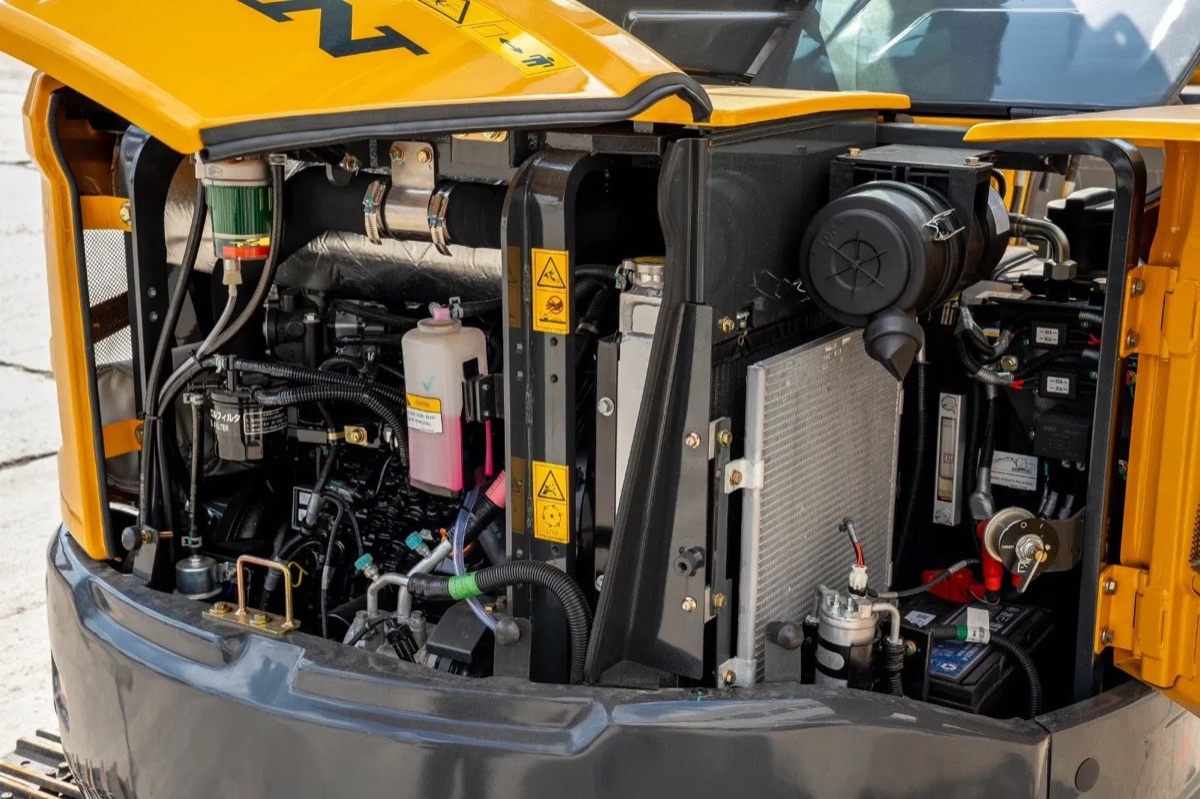

• ✓Yanmar 3TNV88F diesel The same 3-cylinder engine platform used in name-brand compact excavators. Parts and filters are stocked at any Yanmar dealer.
• ✓30.4 kN bucket force Cuts compacted clay and rocky soil with an 18.2 kN arm force behind it - real production digging in tough ground.

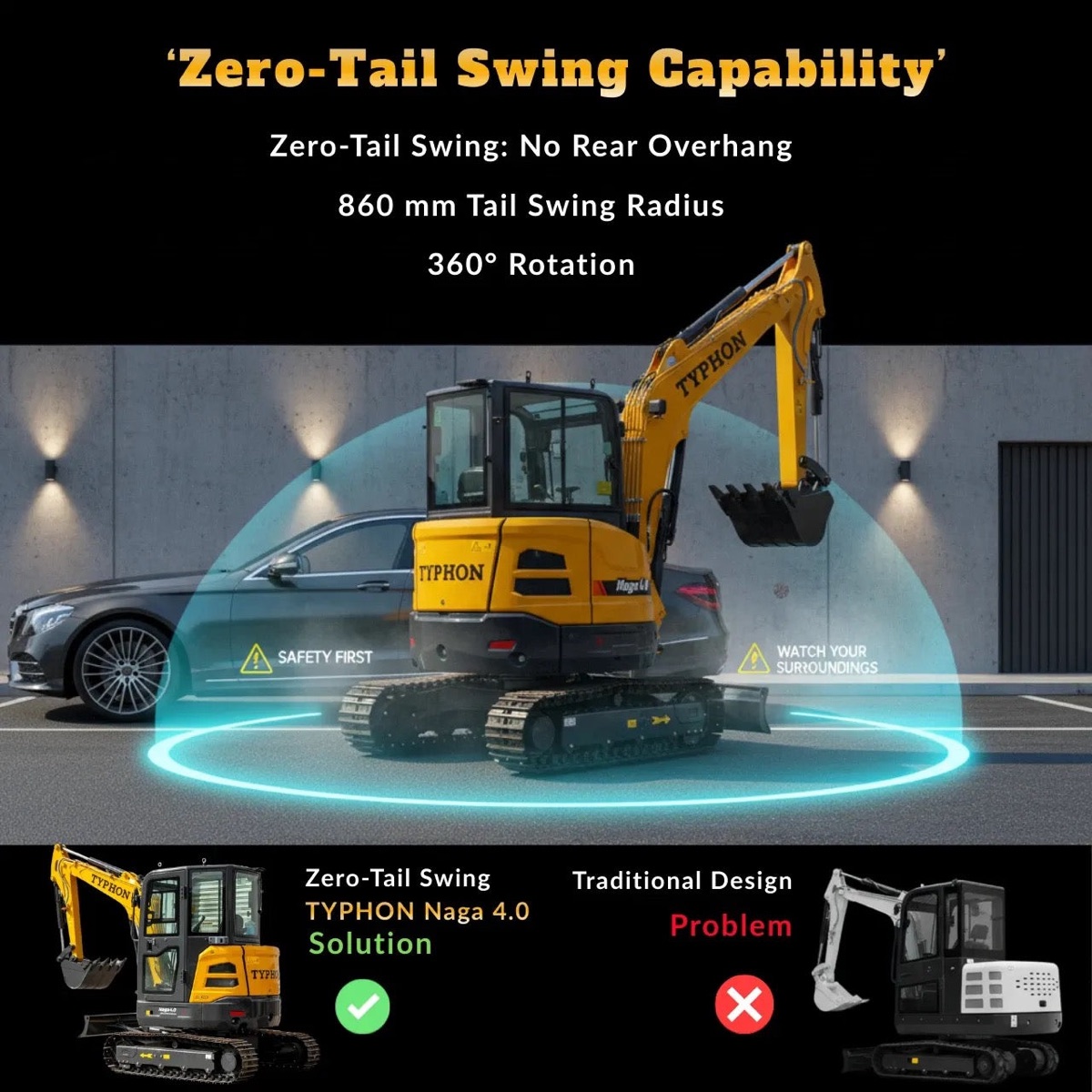

• ✓Zero tail swing The rear stays inside the track width through a full 360 degree rotation - safe beside walls, houses and live traffic.

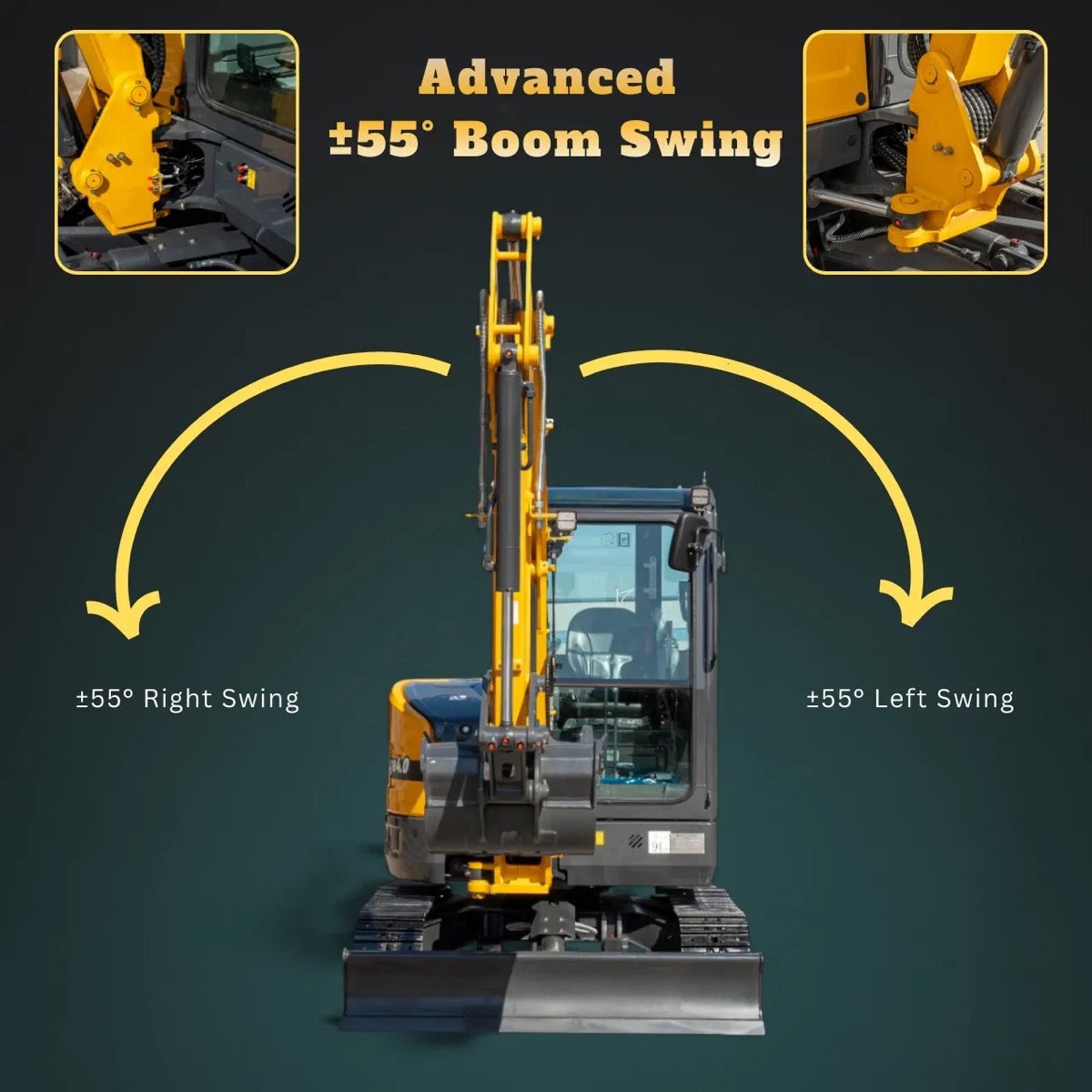

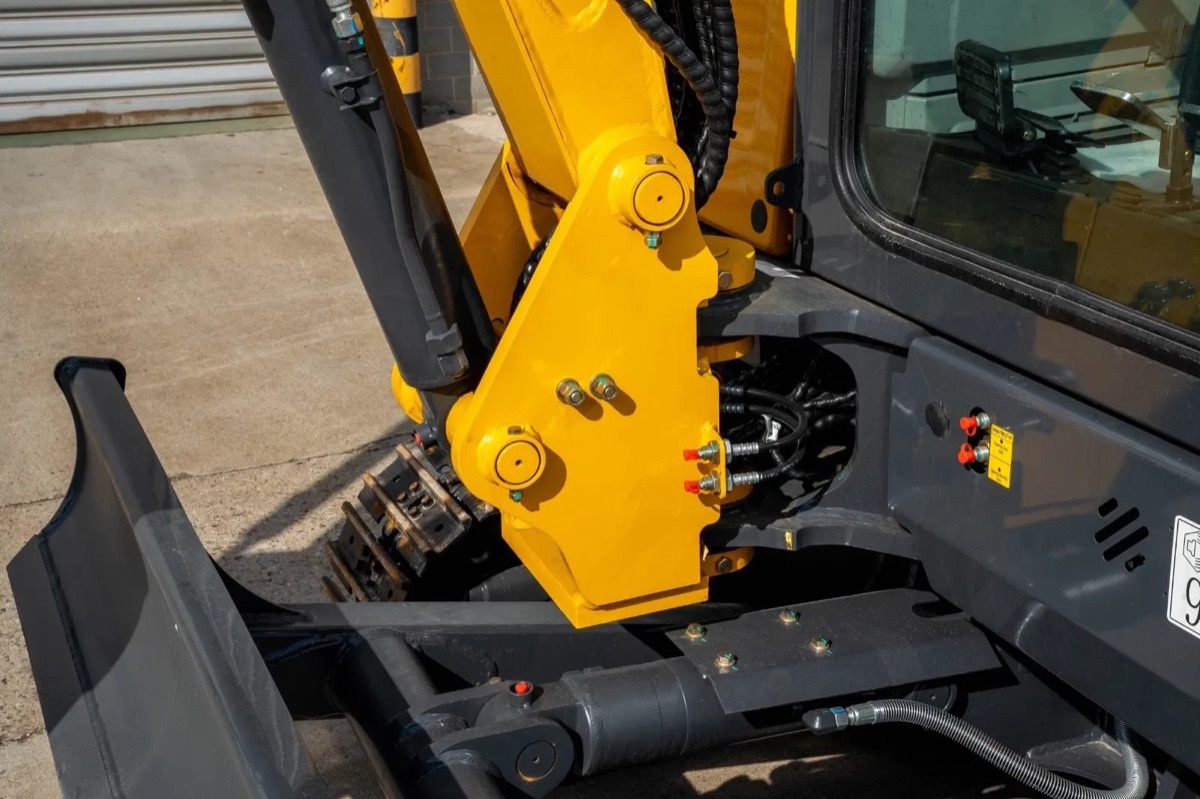

• ✓55 degree boom swing both ways Offset digging along foundations, fences and road edges without repositioning the tracks.

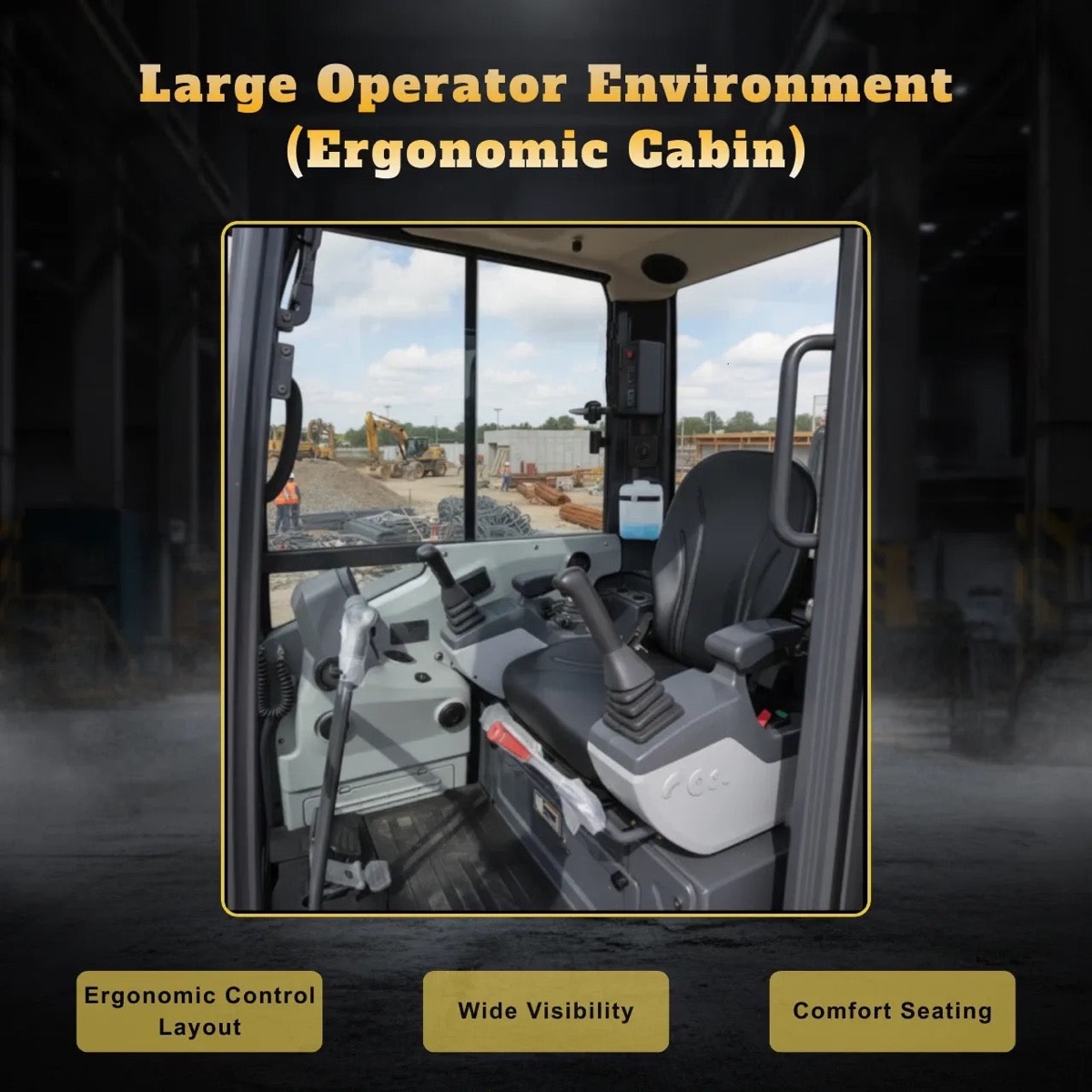

• ✓Enclosed A/C and heater cab Openable front glass, suspension seat and low-effort pilot joysticks with ISO/SAE pattern selection for any operator.
• ✓7 inch smart touchscreen Engine data, hydraulic status, working hours, fault codes, maintenance reminders and control pattern selection in one display.
• ✓Auxiliary hydraulics ready A 96.8 L/min circuit and three-way stop valve run breakers, augers and thumb attachments out of the crate.
