AGT MX15R 1-Ton Commercial Duty Mini Excavator
- 3-year warranty
- 30-day returns
- Free delivery
Swing the boom, not the whole machine.
The AGT MX15R 1-Ton Mini Excavator has a side-swing boom for digging along walls and fences, a hydraulic dozer blade, and a factory-installed manual thumb. It weighs 2,072 lb (940 kg) and is 36.85 inches wide.It digs to 69.65 inches with a 119.7-inch excavation radius and a 33.42-inch tail swing radius. A 13.5 HP (9.8 kW) gasoline engine powers it, and an auxiliary hydraulic line is fitted for attachments.
- Side-swing boom Dig offset from the tracks.

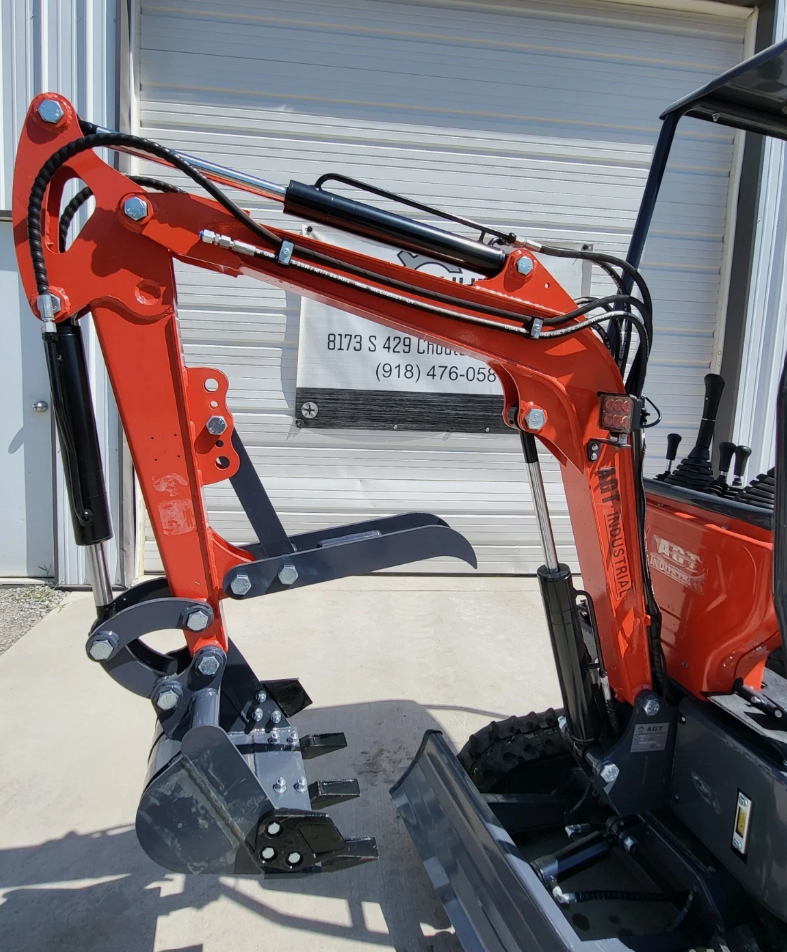

- Factory manual thumb Installed at the factory.
- Hydraulic dozer blade 39.37 × 7.08 in.

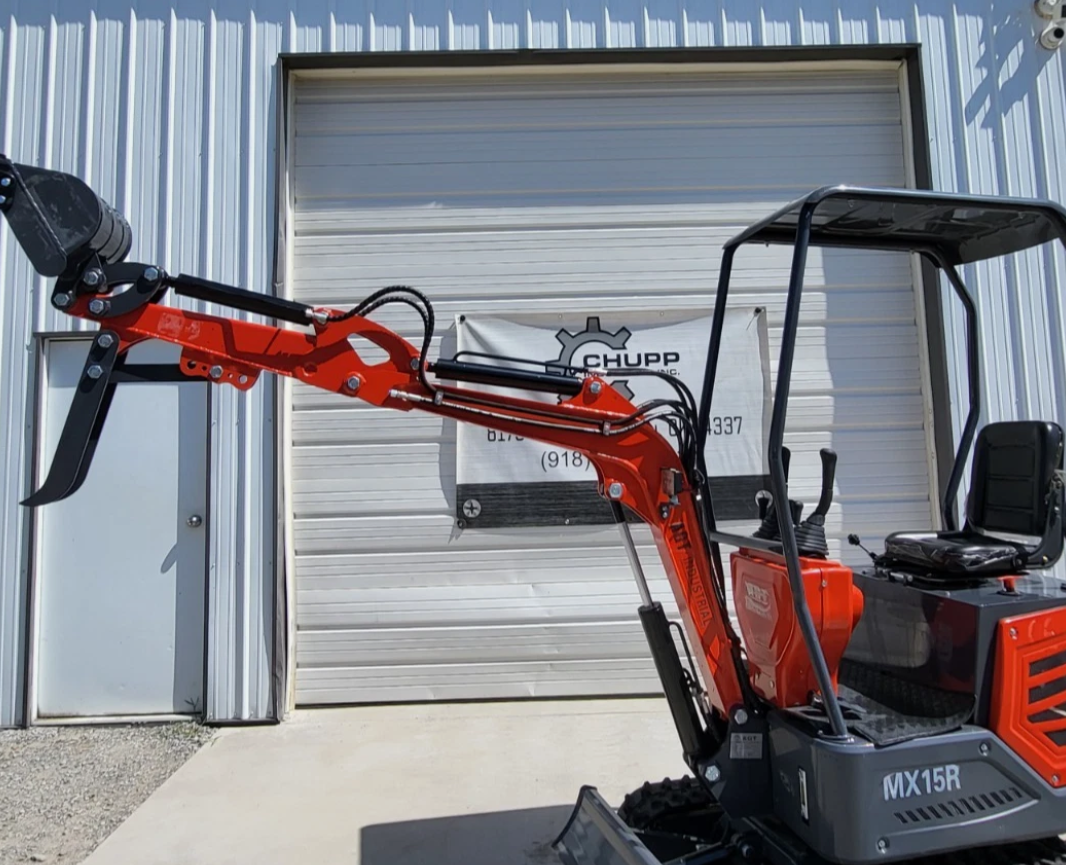

Side-swing boom
Side-swing boom: Dig offset from the tracks. Factory manual thumb: Installed at the factory.

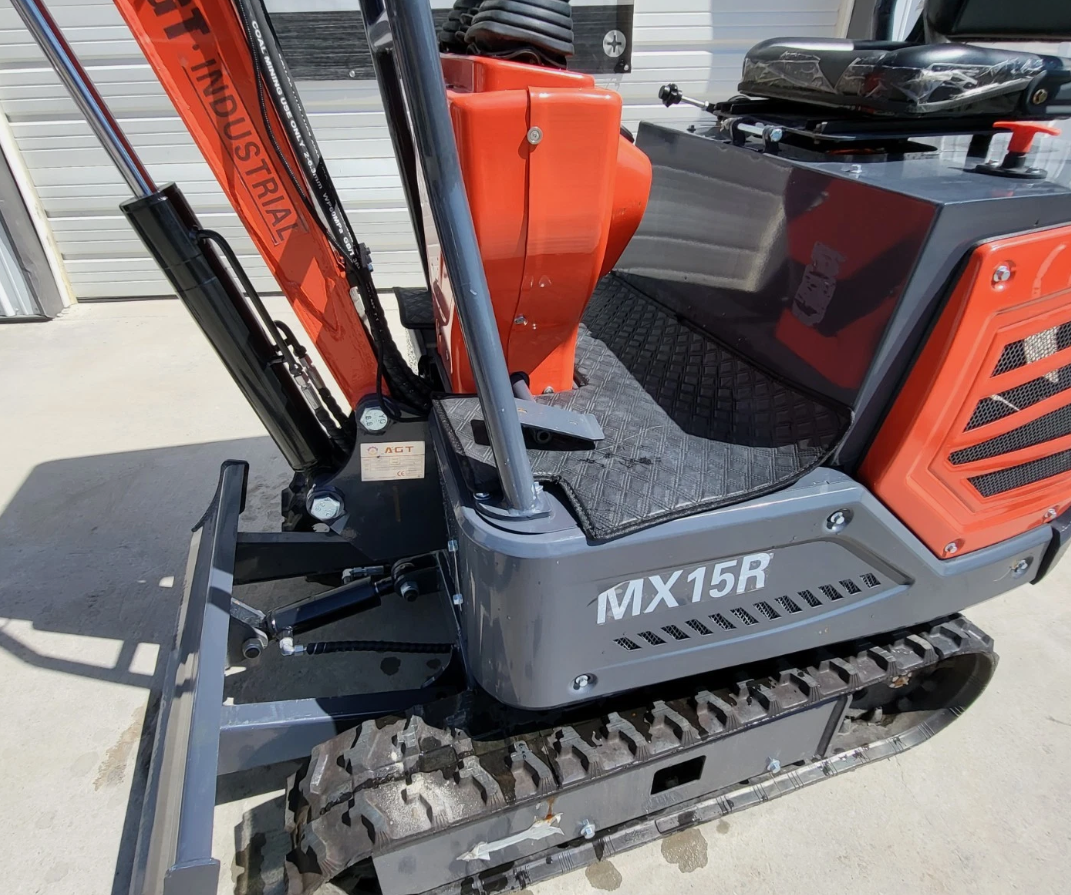

Hydraulic dozer blade
Hydraulic dozer blade: 39.37 × 7.08 in.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 2,072 lb (940 kg) |
|---|---|
| Overall dimensions | 125.9 × 36.85 × 87 in (L × W × H) |

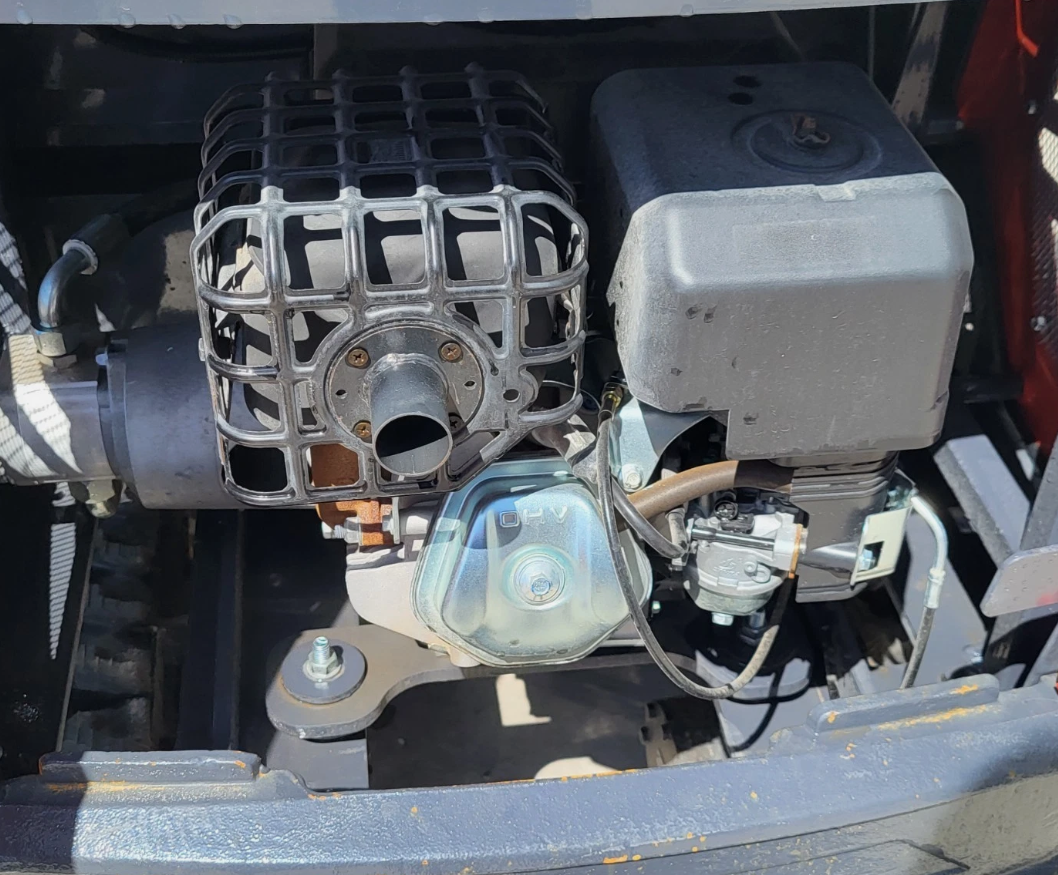

| Engine power | 13.5 HP (9.8 kW) |
| Fuel | 92 octane gasoline |
| Fuel tank | 6.6 L (1.74 gal) |
| Max digging depth | 69.65 in |
| Max vertical digging depth | 62.9 in |
| Max digging height | 101.7 in |
| Max unloading height | 72.83 in |
| Max excavation radius | 119.7 in |
| Min gyration radius | 62.36 in |
| Tail swing radius | 33.42 in |
| Bucket capacity | 0.025 m³ |
| Dozer blade | Hydraulic, 39.37 × 7.08 in |
| Blade lift / dig | 11.33 in / 5.74 in |
| Hydraulic tank | 23 L (6.1 gal) |
| Auxiliary hydraulics | Yes, attachment ready |
| Travel speed | 0–3 km/h |
| Swing speed | 10 RPM |
| Climbing ability | 30% grade |
| Thumb | Factory-installed manual thumb |
| Tracks | Rubber |
What’s included
These come with the machine.
- ✓ Factory-installed manual thumb
- ✓ Hydraulic dozer blade
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usWhat does the side-swing boom do?
It lets the boom pivot left and right independently of the house, so you can dig close to walls, fences, and foundations without moving the tracks.
How wide is the MX15R?
36.85 inches, with a 33.42-inch tail swing radius. Overall length is 125.9 inches and height is 87 inches.
Is the thumb hydraulic?
No. It has a factory-installed manual thumb. An auxiliary hydraulic line is fitted for hydraulic attachments.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
