AGT MX12RX 1-Ton Pro Pilot Control Mini Excavator
- 3-year warranty
- 30-day returns
- Free delivery
Joystick control with the hoses tucked away.

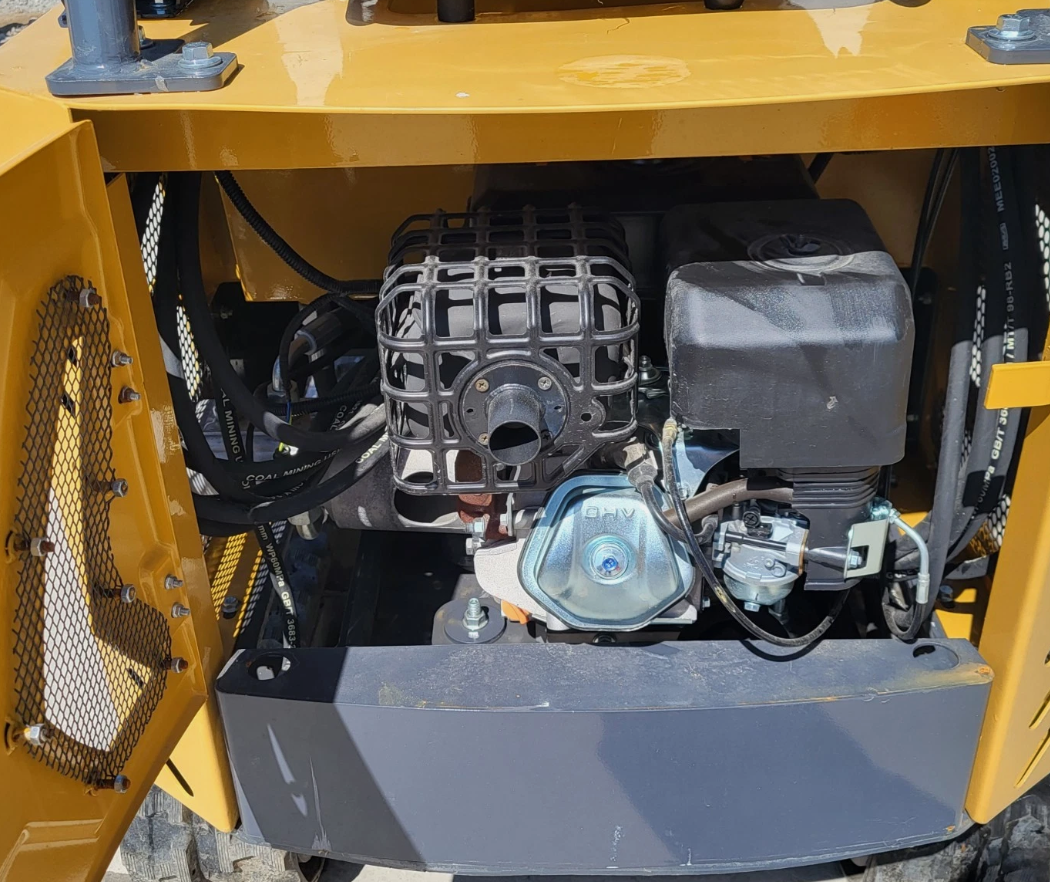

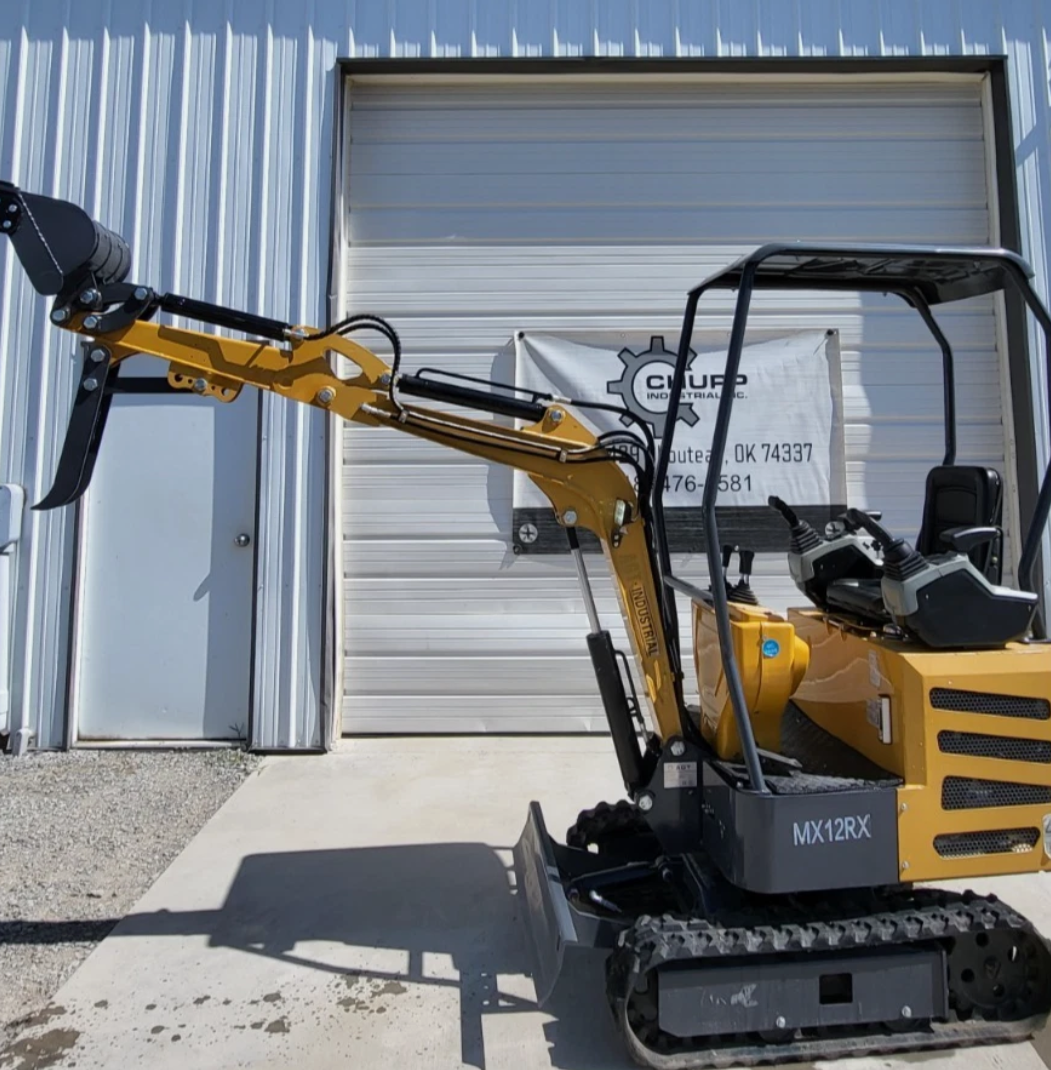

The AGT MX12RX 1-Ton Mini Excavator has pilot joystick controls and internal hydraulic hose routing. It is powered by a 13.5 HP RATO air-cooled 4-stroke gasoline engine and weighs 1,798 lb (816 kg).It is 39 inches wide, digs to about 5 feet 9 inches, and comes with a mechanical thumb and a backfill blade. Auxiliary hydraulics are ready for attachments.
- Pilot joystick controls Smooth multi-function movement.
- Internal hose routing Fewer exposed lines.
- Mechanical thumb Plus a backfill blade.
Pilot joystick controls
Pilot joystick controls: Smooth multi-function movement. Internal hose routing: Fewer exposed lines.
Mechanical thumb
Mechanical thumb: Plus a backfill blade.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 1,798 lb (816 kg) |
|---|---|
| Overall width | 39 in (1.1 m) |
| Engine | RATO gasoline, air-cooled 4-stroke |
| Power | 13.5 HP (10.1 kW) |
| Fuel tank | 1.74 gal |
| Max digging depth | Approx. 5 ft 9 in |
| Controls | Pilot joystick |
| Thumb | Mechanical thumb |

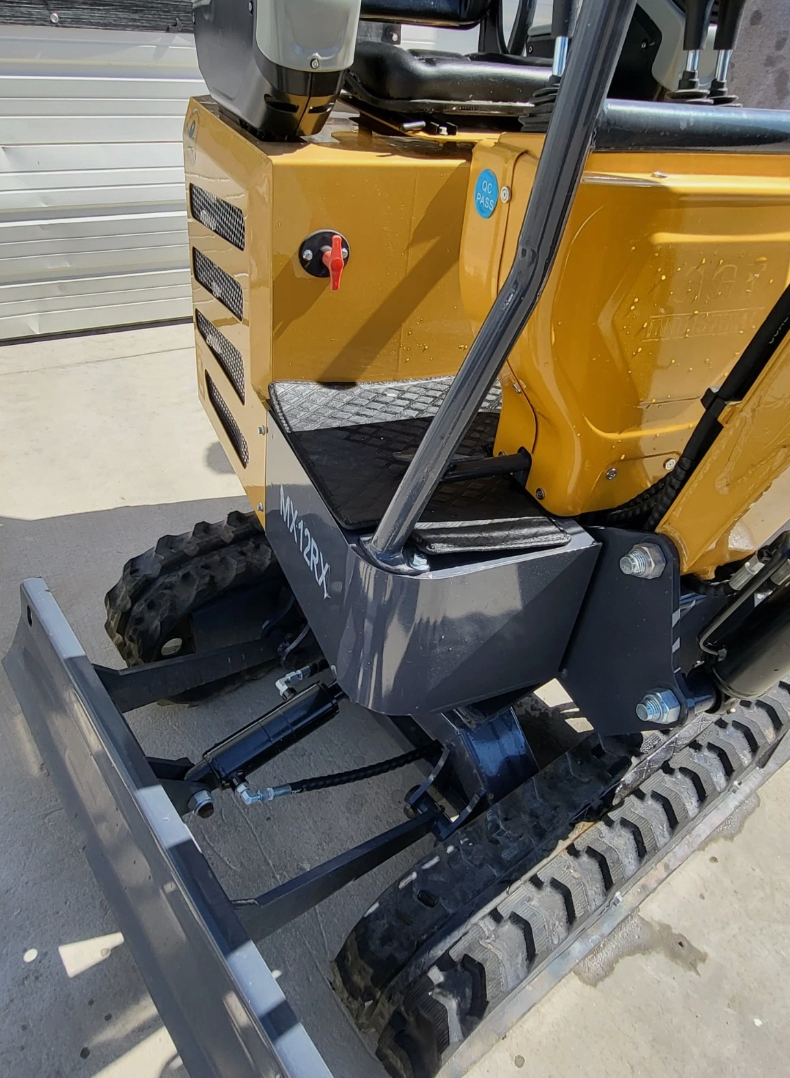

| Blade | Backfill blade |
| Hydraulic tank | 4.7 gal |
| Hose routing | Internal |
| Auxiliary hydraulics | Yes, attachment ready |
| Tracks | Rubber |
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usWhat’s different about the MX12RX?
It has pilot joystick controls and internal hydraulic hose routing, along with a mechanical thumb and a backfill blade.
How deep does it dig?
About 5 feet 9 inches.
How wide is it?
39 inches (1.1 m) overall. Measure your gate and access path before ordering.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
