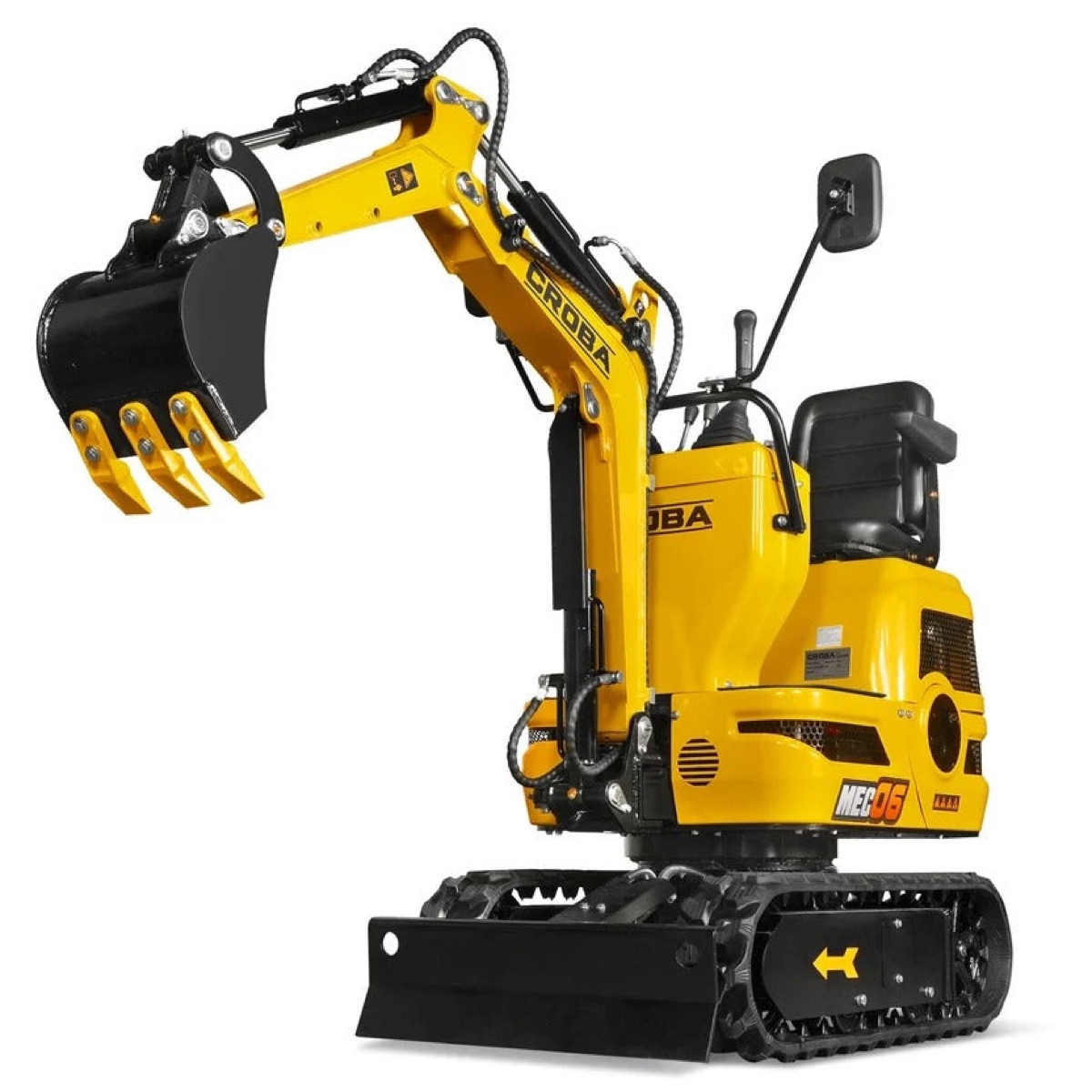

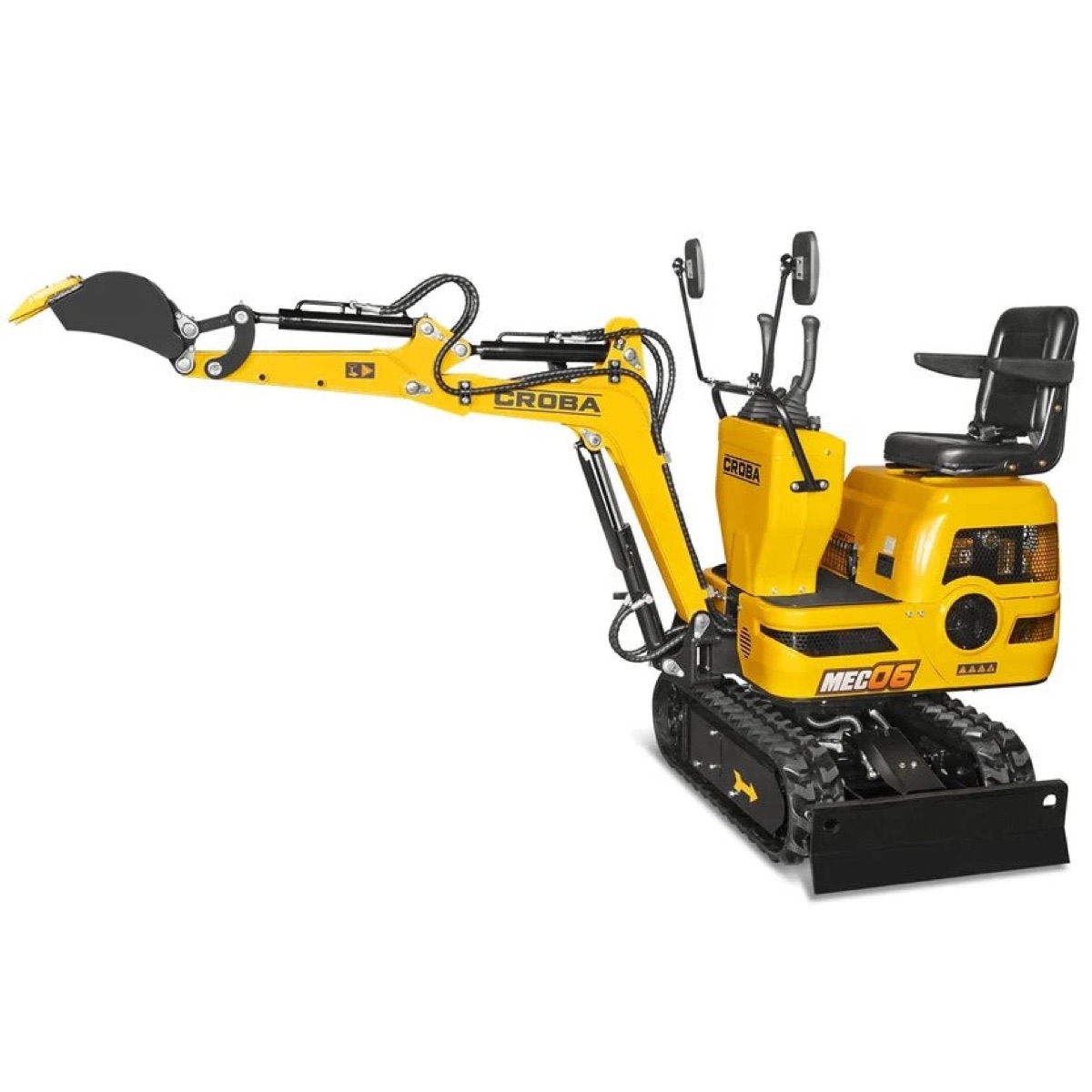

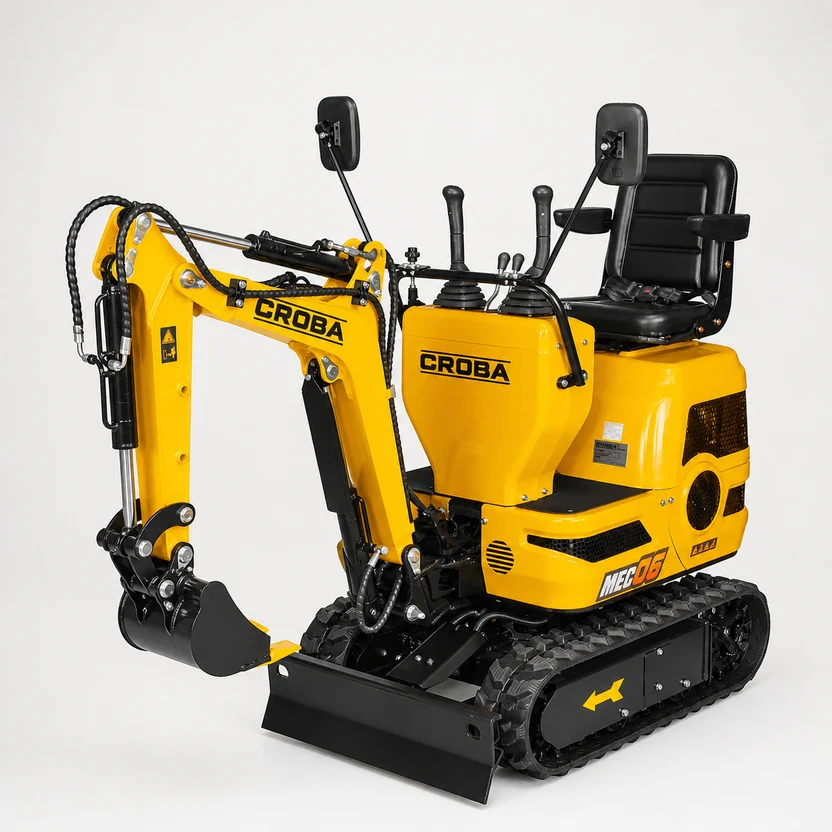

MEC06 9HP Mini Excavator - 28 in Wide, 43.3 in Digging Depth
- 3-year warranty
- 30-day returns
- Free delivery

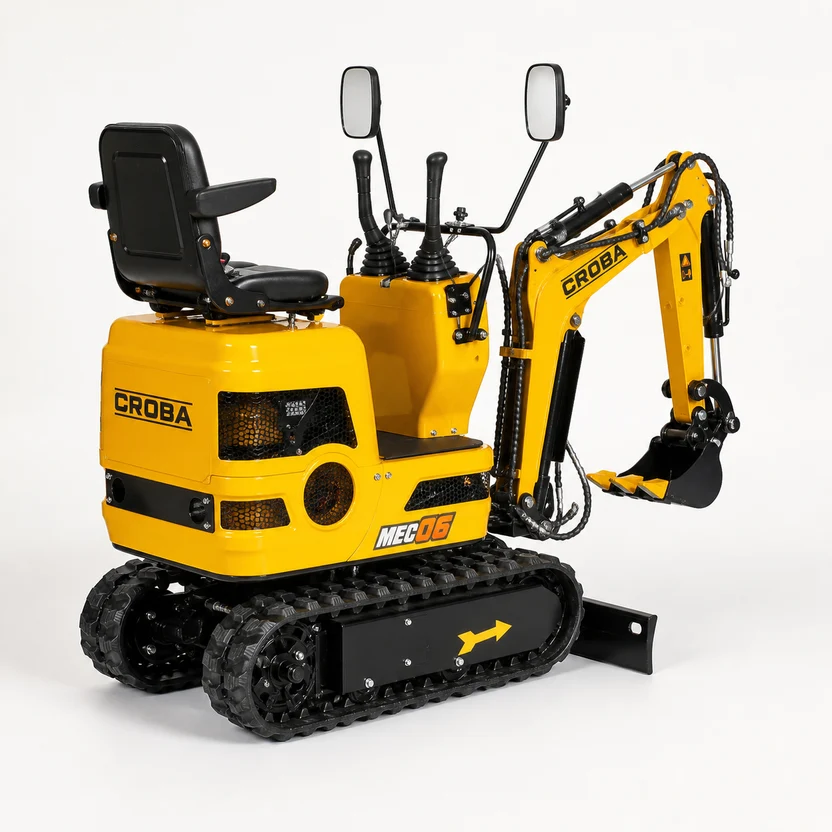

MEC06 9HP Mini Excavator - 28 in Wide, 43.3 in Digging Depth

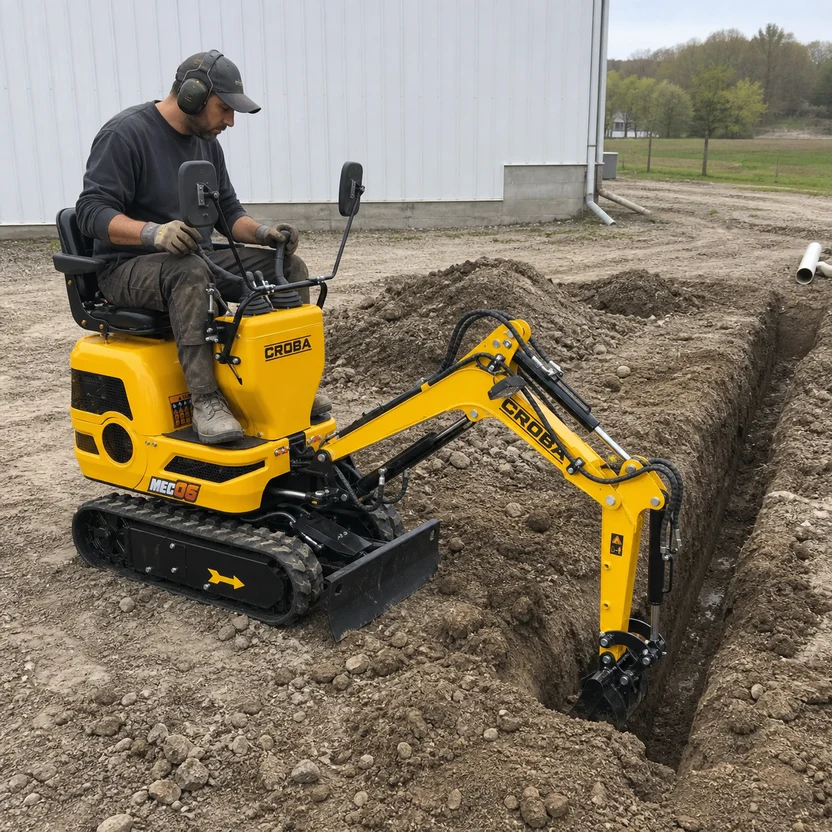

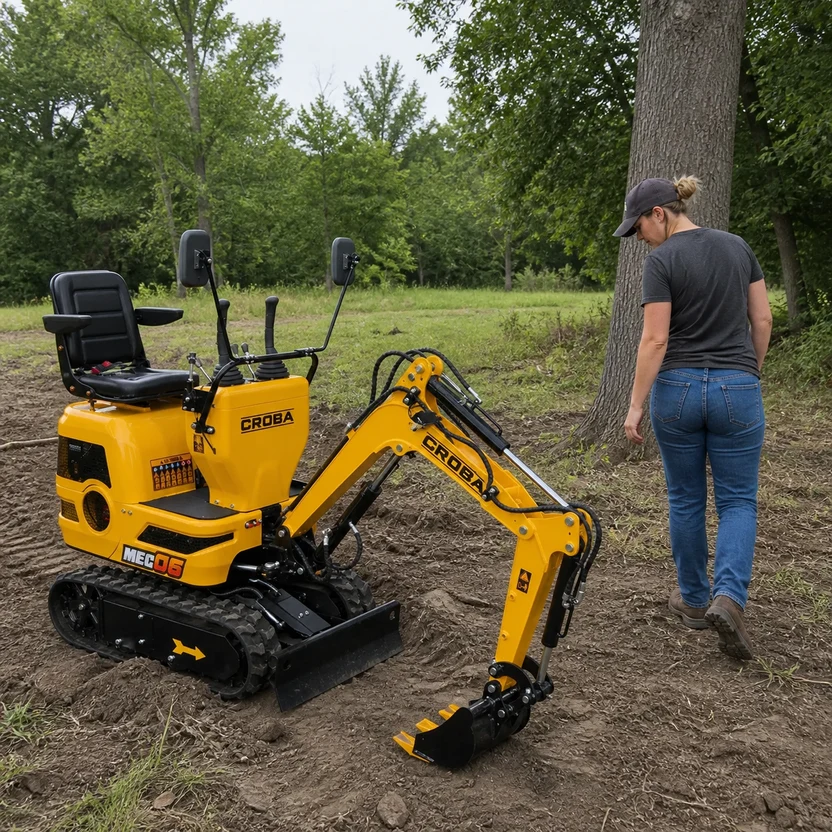

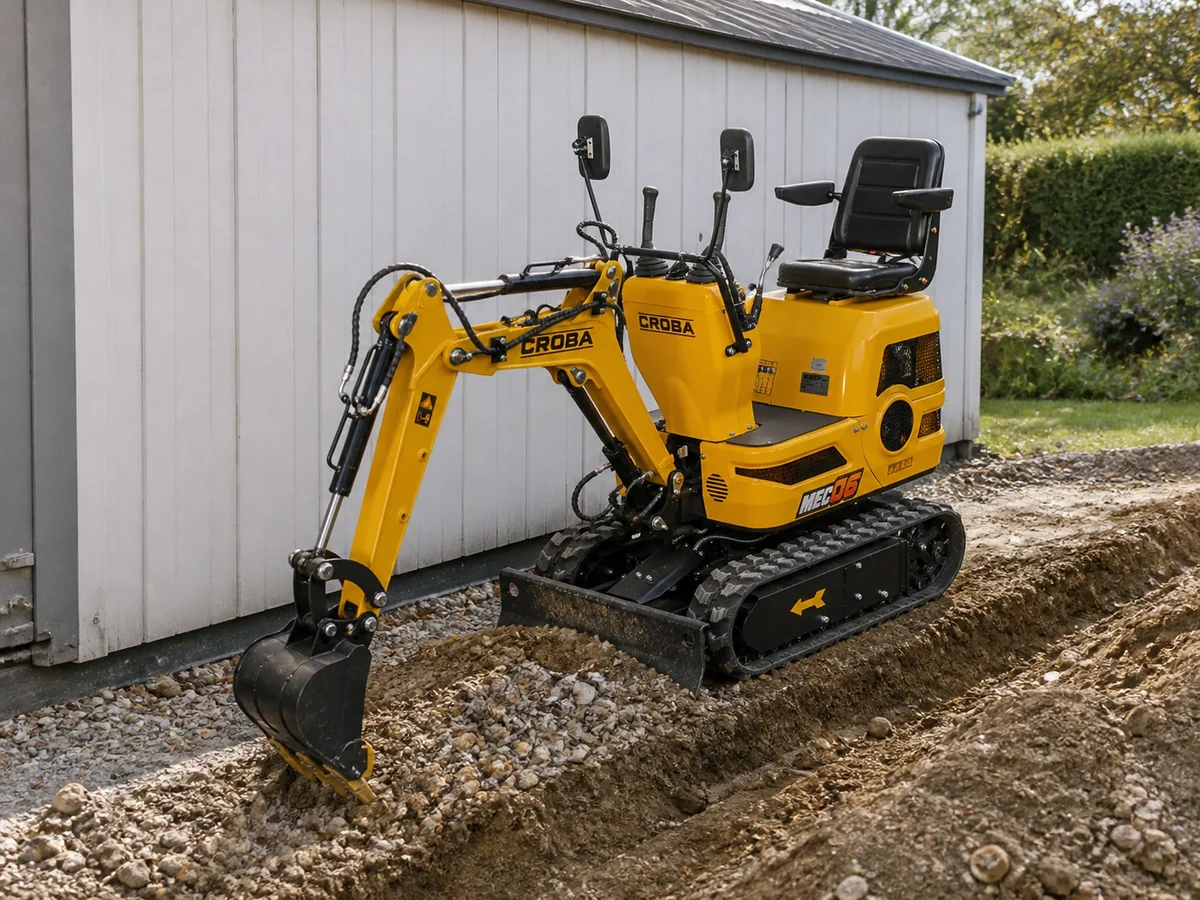

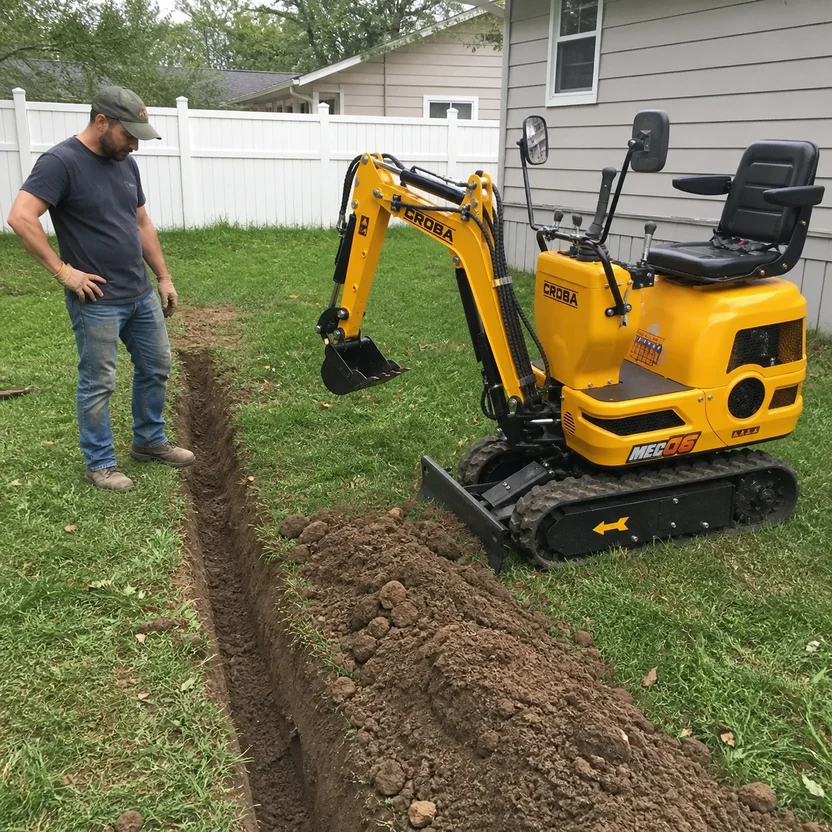

Built for property work where larger machines cannot fit, the MEC06 combines a narrow 28-inch chassis with a 43.3-inch maximum digging depth, 360° upper-body rotation and a fuel-efficient Loncin G300FDA 300cc 9HP engine. Its 1,345 lb operating weight, rubber tracks, front dozer blade and attachment-ready auxiliary hydraulic system make it a practical choice for backyard drainage, landscaping, irrigation trenches, fence-line preparation and light residential site work.
- Ultra-narrow 28-inch profile Drives through standard garden gates, pedestrian doorways, and tight backyard access.
- Loncin G300FDA 9HP gas engine Dependable 300cc 4-stroke engine with electric start and manual recoil backup.
- 360° continuous rotation Full turret swing for easy trenching, spoiling, and truck loading in confined spaces.
- Auxiliary hydraulics plumbed Boom-mounted quick couplers ready for hydraulic augers, breakers, and thumbs.
- Front dozer blade included Backfill trenches, level working pads, and stabilize the machine while digging.
Ultra-narrow 28-inch profile
Ultra-narrow 28-inch profile: Drives through standard garden gates, pedestrian doorways, and tight backyard access. Loncin G300FDA 9HP gas engine: Dependable 300cc 4-stroke engine with electric start and manual recoil backup.
360° continuous rotation
360° continuous rotation: Full turret swing for easy trenching, spoiling, and truck loading in confined spaces. Auxiliary hydraulics plumbed: Boom-mounted quick couplers ready for hydraulic augers, breakers, and thumbs.
Front dozer blade included
Front dozer blade included: Backfill trenches, level working pads, and stabilize the machine while digging.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 1,345 lb (610 kg) |
|---|---|
| Engine model | Loncin G300FDA 4-stroke OHV gasoline |
| Displacement | 300 cc |
| Rated power | 9 HP (6.6 kW) at 3,600 rpm |
| Starting system | Electric key start & recoil backup |
| Max digging depth | 43.3 in (1,100 mm) |
| Max digging reach | 94.5 in (2,400 mm) |
| Max dumping height | 72.8 in (1,850 mm) |
| Total machine width | 28 in (710 mm) |
| Total machine length | 90.5 in (2,300 mm) |
| Total machine height | 55 in (1,400 mm) |
| Turret rotation | 360° continuous slewing |
| Bucket capacity | 0.02 m³ (12-inch digging bucket) |
| Track type | Heavy-duty rubber tracks (6 in wide) |
| Hydraulic working pressure | 16 MPa |
| Auxiliary plumbing | Included at boom tip |
| Warranty | 1 year limited warranty |
What’s included
These come with the machine.
- ✓ MEC06 9HP Mini Excavator
- ✓ 12-inch standard digging bucket
- ✓ Front hydraulic dozer blade
- ✓ Operator tool kit
- ✓ Operating and maintenance manual
- ✓ Heavy-duty timber transport crate
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usShipping and delivery
Free LTL freight to the contiguous 48 states, included in the price. Orders are dispatched within 2 business days and transit takes 6 - 9 business days. Delivery is curbside and the carrier calls ahead to book an appointment. A liftgate is available on request - email support@groundmark.us after ordering.
Returns
30 days to return an unused, uncrated machine. Return freight is at the buyer's cost. Warranty claims are handled separately from returns - see the Refund Policy.
Warranty and support
1-year limited warranty on materials and workmanship, plus lifetime technical support from our U.S.-based team. Full terms on the Warranty page.
Payment and financing
We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Shop Pay. Financing and pay-monthly options are available at checkout, subject to eligibility - see Financing.
Do I need a licence or a special trailer?

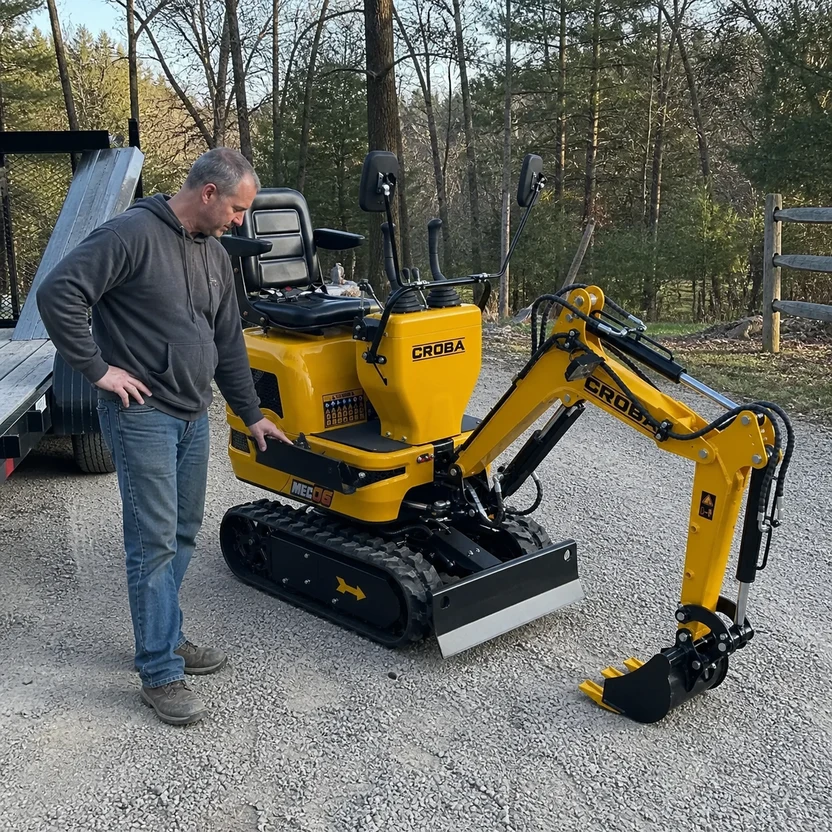

No licence is required to own or operate the machine on private property. At 1,345 lb it rides on a 5 x 8 ft utility trailer behind almost any pickup or SUV, and two people can load it with ramps.
How do I track my order?
Use the Track Your Order page with the order number from your confirmation email.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
