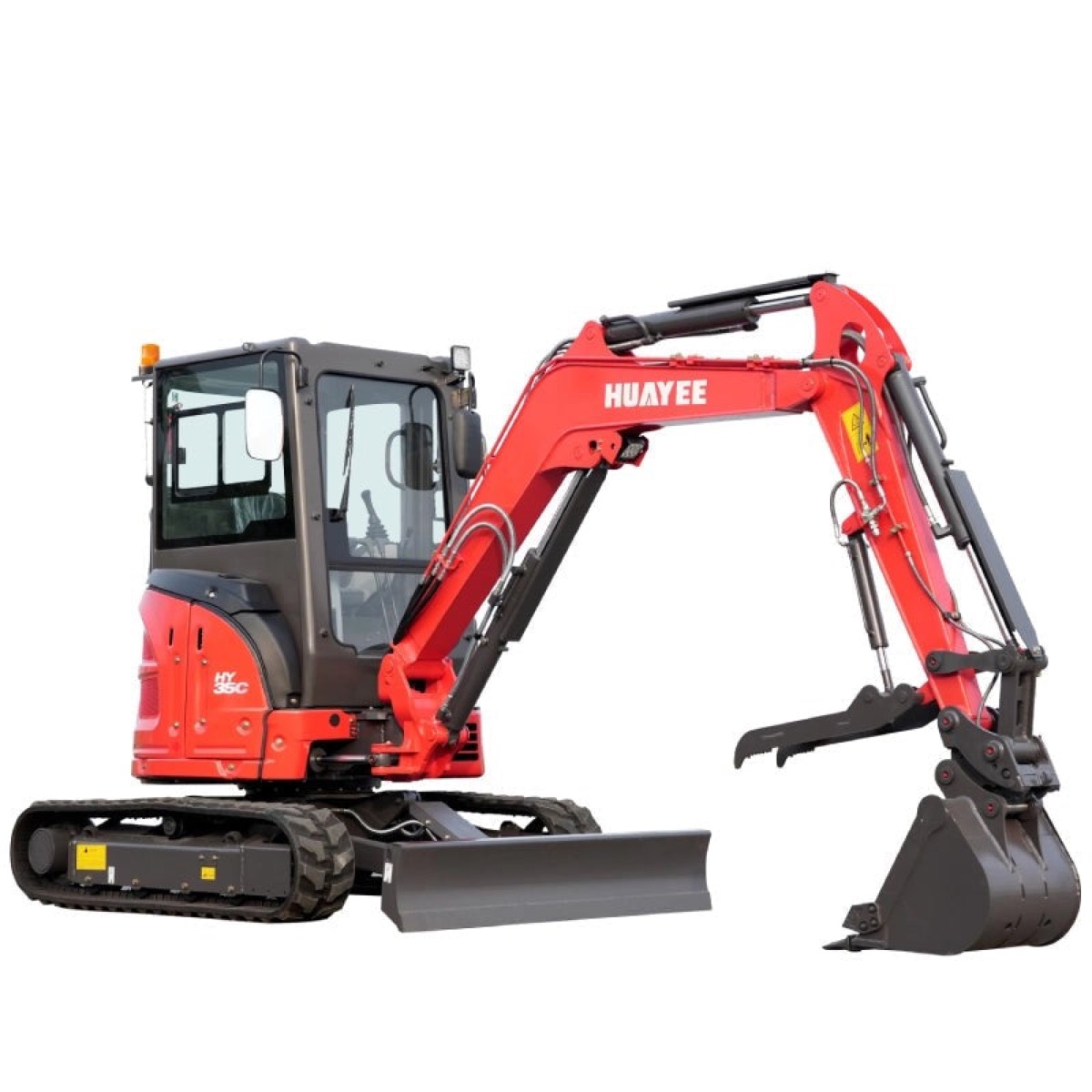

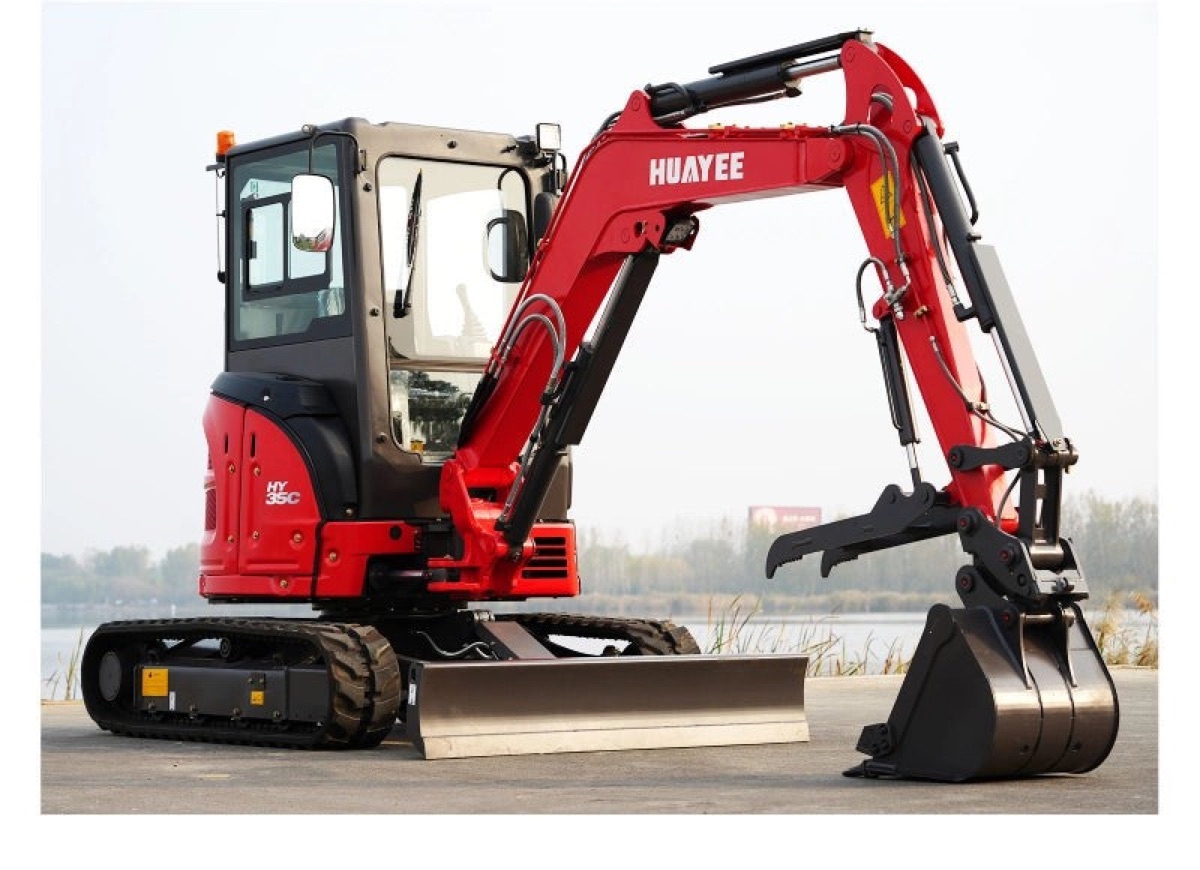

3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom

3.5 Ton Yanmar Diesel Mini Excavator with Enclosed A/C Cab, Hydraulic Thumb and Swing Boom

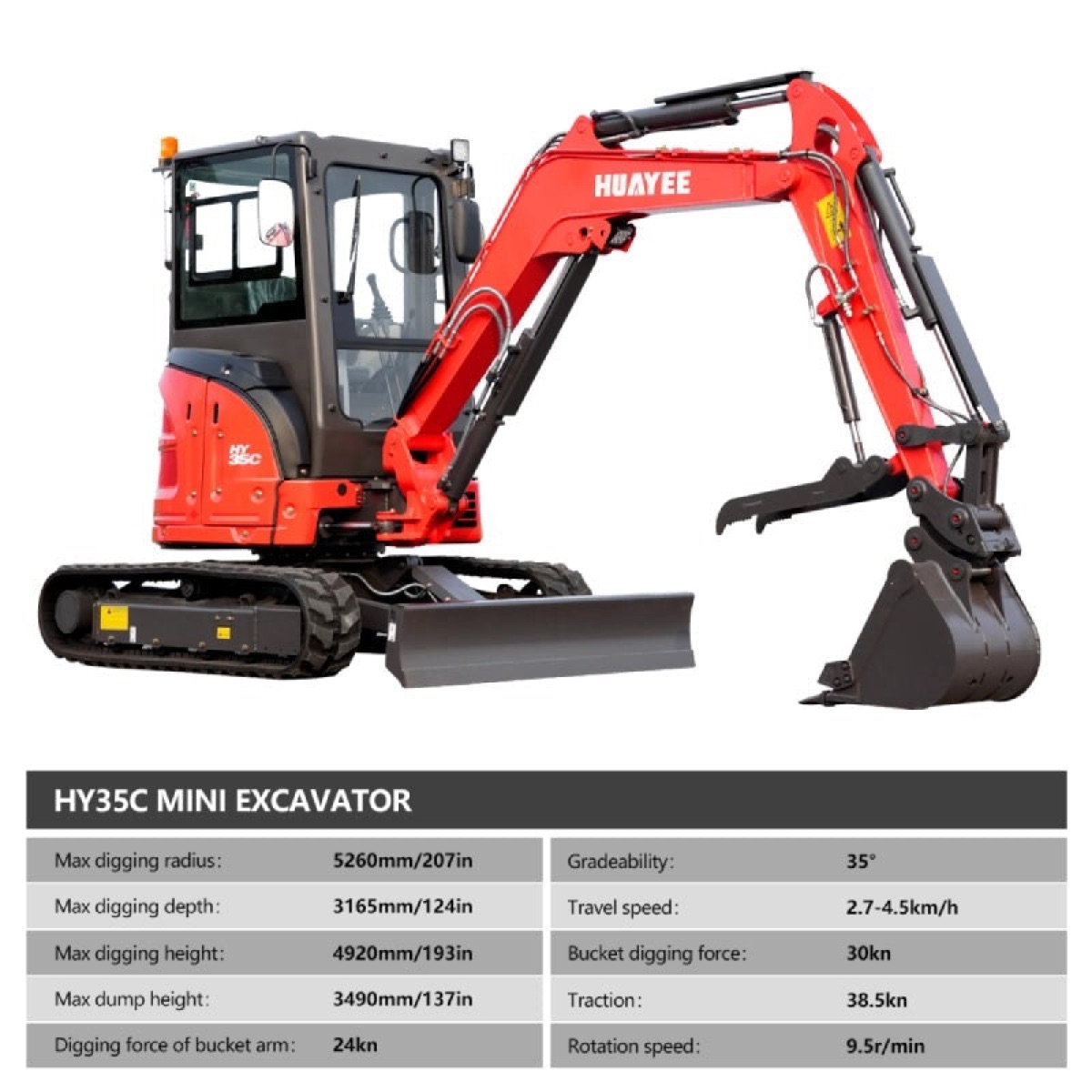

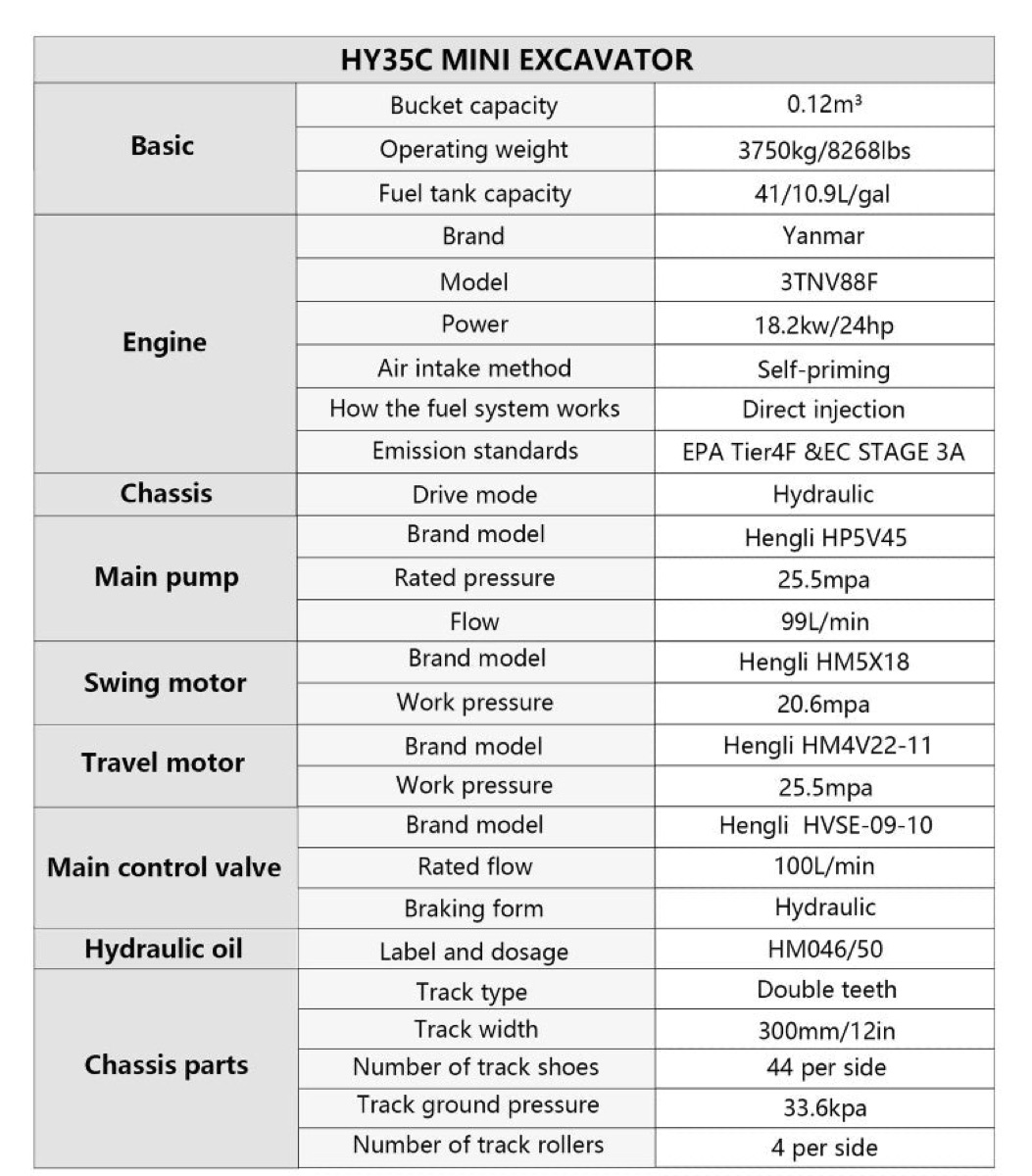

The  full-cab 3.5 ton excavator at a price that used to buy a canopy machine. A 3,750 kg (8,268 lb) operating weight, a Yanmar 3TNV88F 24 HP direct-injection diesel (EPA Tier 4 Final), an enclosed cab with air conditioning and heat, a factory hydraulic thumb, a swing boom and 2-speed planetary travel motors make it a real production machine, not a hobby digger. Dig to 124 inches (3.17 m), reach 207 inches and dump into a truck bed from 137 inches, in any weather. It is built for contractors, landscapers, fencing and drainage crews, farms and property owners who want to stop paying rental invoices and own a machine that works every day. Brand new, crated, and delivered free by LTL freight to the contiguous 48 states. What your order includes Brand-new IronPeak Titan 3500 3.5 ton mini excavator, enclosed FOPS cab Yanmar 3TNV88F 24 HP diesel engine, EPA Tier 4 Final / EU Stage 3A Factory hydraulic thumb fitted to the arm 0.12 m3 (600 mm) standard digging bucket Air conditioning and heat, suspension seat, USB radio, LED work lights, beacon Rear-view camera with 7 inch LCD screen Hydraulic pilot controls with 2-speed planetary travel motors Dozer blade, 300 mm rubber tracks, auxiliary hydraulic lines with quick-connect Owner's manual, tool kit and a fully crated heavy-item freight preparation for U.S. delivery Eight reasons this machine wins Yanmar 3TNV88F diesel. The same 3-cylinder engine used in name-brand 3-4 ton excavators. Parts and filters are stocked at any Yanmar dealer. 124 inch dig depth. Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches. Hydraulic thumb from the factory. Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later. Swing boom. Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks. Enclosed A/C and heat cab. Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive. Hengli hydraulics, 99 L/min at 3,700 psi. Piston pump and multi-function valve with enough flow for a breaker, auger or grapple. Rear-view camera and LED lights. Back up safely on tight sites and keep digging after dark. Trailer-friendly. Under 8,300 lb with a 12 inch track, so it moves on a 10,000 lb class equipment trailer behind a 3/4 ton pickup. In the field Utility and drainage trenching - water, sewer, conduit, French drains and culverts. Foundations and footings - additions, retaining walls, pier holes and basement digs. Land clearing - stumps, brush and rock with the hydraulic thumb. Farm and ranch - fence lines, ponds, stock tanks, irrigation and manure handling. Landscaping and hardscape - grading pads, moving boulders, planting mature trees. Demolition and municipal work - sidewalks, small structures, storm drain repairs. Specifications Basic Operating weight 3,750 kg (8,268 lb) Bucket capacity 0.12 m3 Fuel tank capacity 41 L (10.9 gal) Track width 300 mm (12 in), double-tooth rubber, 44 shoes and 4 rollers per side Track ground pressure 33.6 kPa Working range Max digging depth 3,165 mm (124 in) Max digging height 4,920 mm (193 in) Max dump height 3,490 mm (137 in) Max digging radius 5,260 mm (207 in) Bucket digging force 30 kN Arm digging force 24 kN Traction 38.5 kN Gradeability 35 degrees Travel speed 2.7 / 4.5 km/h (2-speed) Rotation speed 9.5 rpm Engine Engine Yanmar 3TNV88F, 3-cylinder direct-injection diesel Rated power 18.2 kW (24 HP) Emission standard EPA Tier 4 Final and EU Stage 3A Fuel system Direct injection, self-priming Hydraulics Main pump Hengli HP5V45 piston pump, 99 L/min, 25.5 MPa (3,700 psi) Main control valve Hengli HVSE-09-10, 100 L/min, hydraulic braking Swing motor Hengli HM5X18, 20.6 MPa Travel motors Hengli HM4V22-11, 25.5 MPa, 2-speed planetary Hydraulic oil HM046 / 50 L Cab and features Cab Enclosed FOPS cab, air conditioning and heat, suspension seat, USB radio, wiper and washer Controls Hydraulic pilot joysticks, 2-speed travel, hydraulic oil cooler with fan Safety and lighting Rear-view camera with 7 in LCD, LED work lights, beacon light, mirrors Attachments Hydraulic thumb, 600 mm bucket, dozer blade, auxiliary lines with quick-connect The working-range diagram and the full factory specification sheet are in the product photos above.

• ✓Yanmar 3TNV88F diesel The same 3-cylinder engine used in name-brand 3-4 ton excavators. Parts and filters are stocked at any Yanmar dealer.
• ✓124 inch dig depth Deep enough for water and sewer laterals, footings, septic and 8 foot drainage trenches.
• ✓Hydraulic thumb from the factory Rocks, stumps, logs, pipe and demolition debris without buying and plumbing a thumb later.
• ✓Swing boom Offset the boom and dig flush against foundations, fences and curbs without repositioning the tracks.

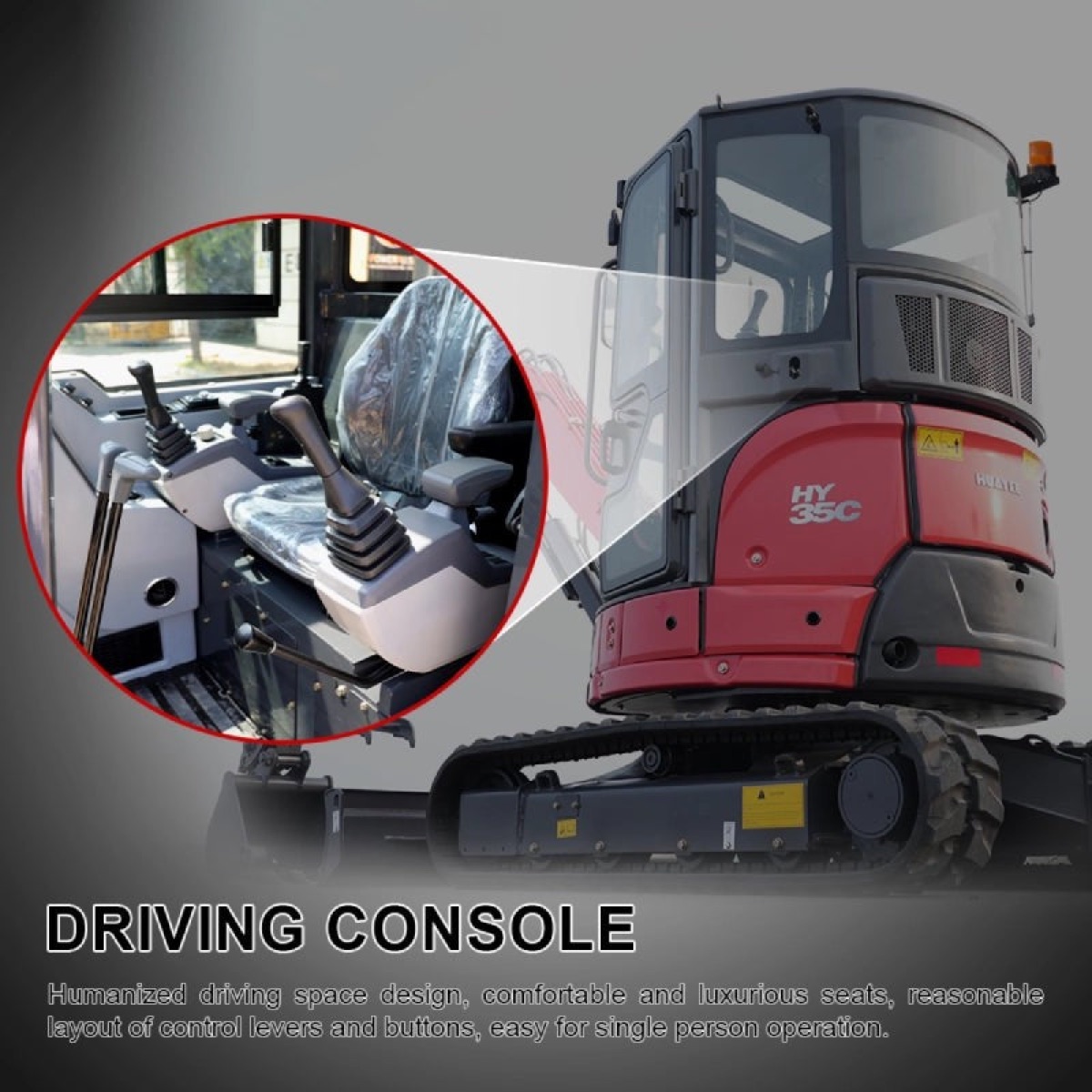

• ✓Enclosed A/C and heat cab Work in July heat or January cold. Wipers, washer, radio and a suspension seat keep the operator productive.
• ✓Hengli hydraulics, 99 L/min at 3,700 psi Piston pump and multi-function valve with enough flow for a breaker, auger or grapple.

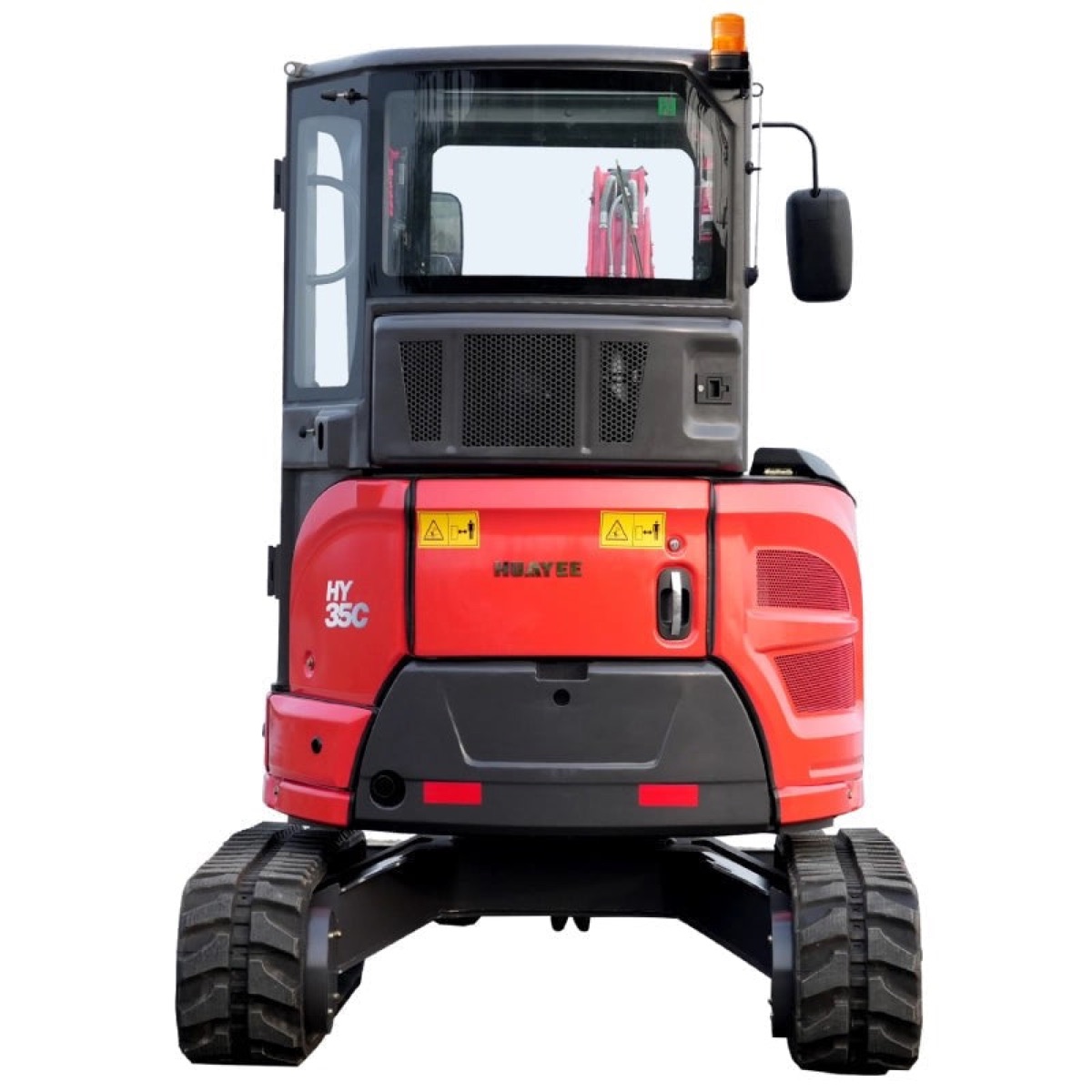

• ✓Rear-view camera and LED lights Back up safely on tight sites and keep digging after dark.
• ✓Trailer-friendly Under 8,300 lb with a 12 inch track, so it moves on a 10,000 lb class equipment trailer behind a 3/4 ton pickup.
