AGT MX12R 1-Ton Compact Crawler Mini Excavator
- 3-year warranty
- 30-day returns
- Free delivery

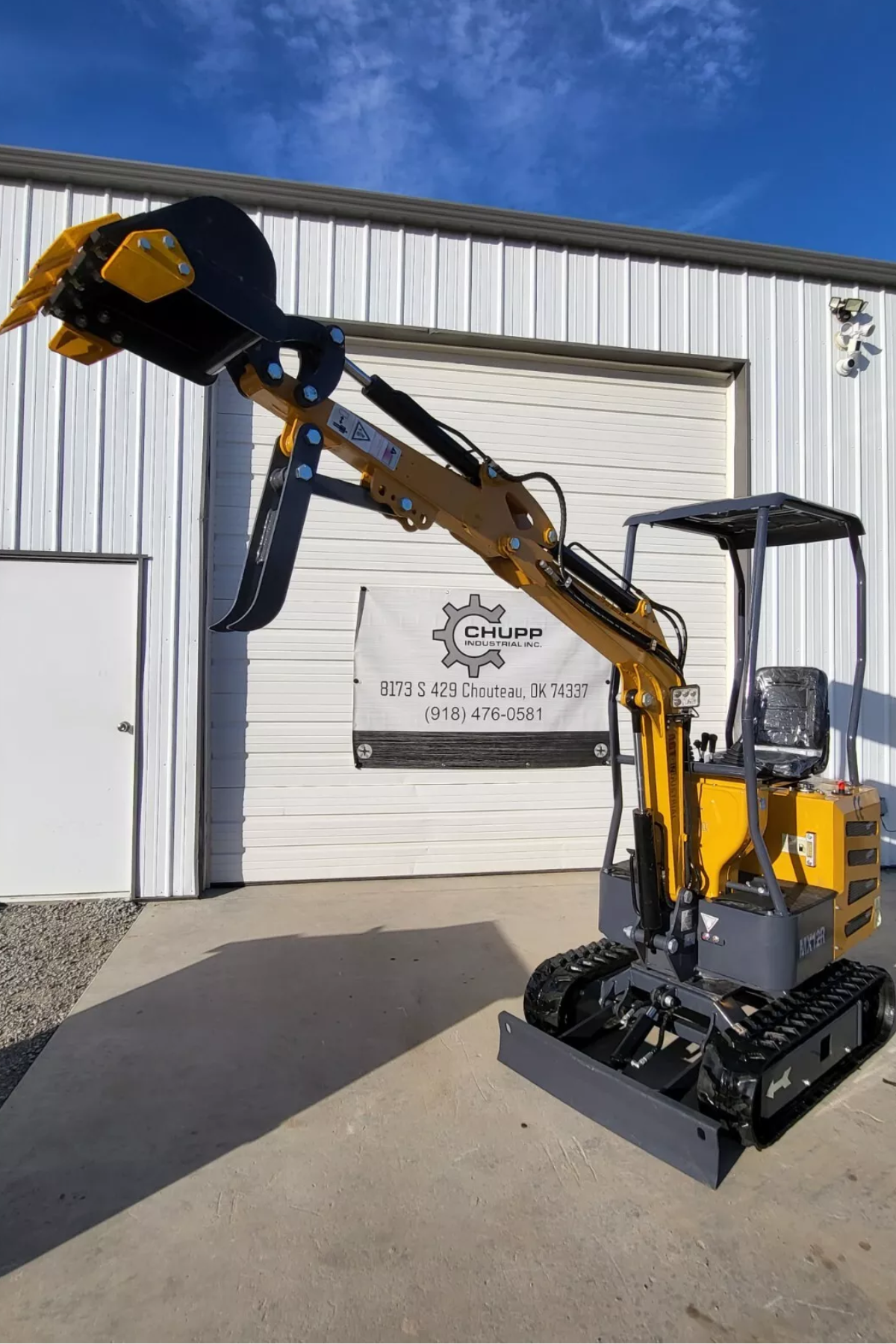

A 69-inch dig with a thumb on board.

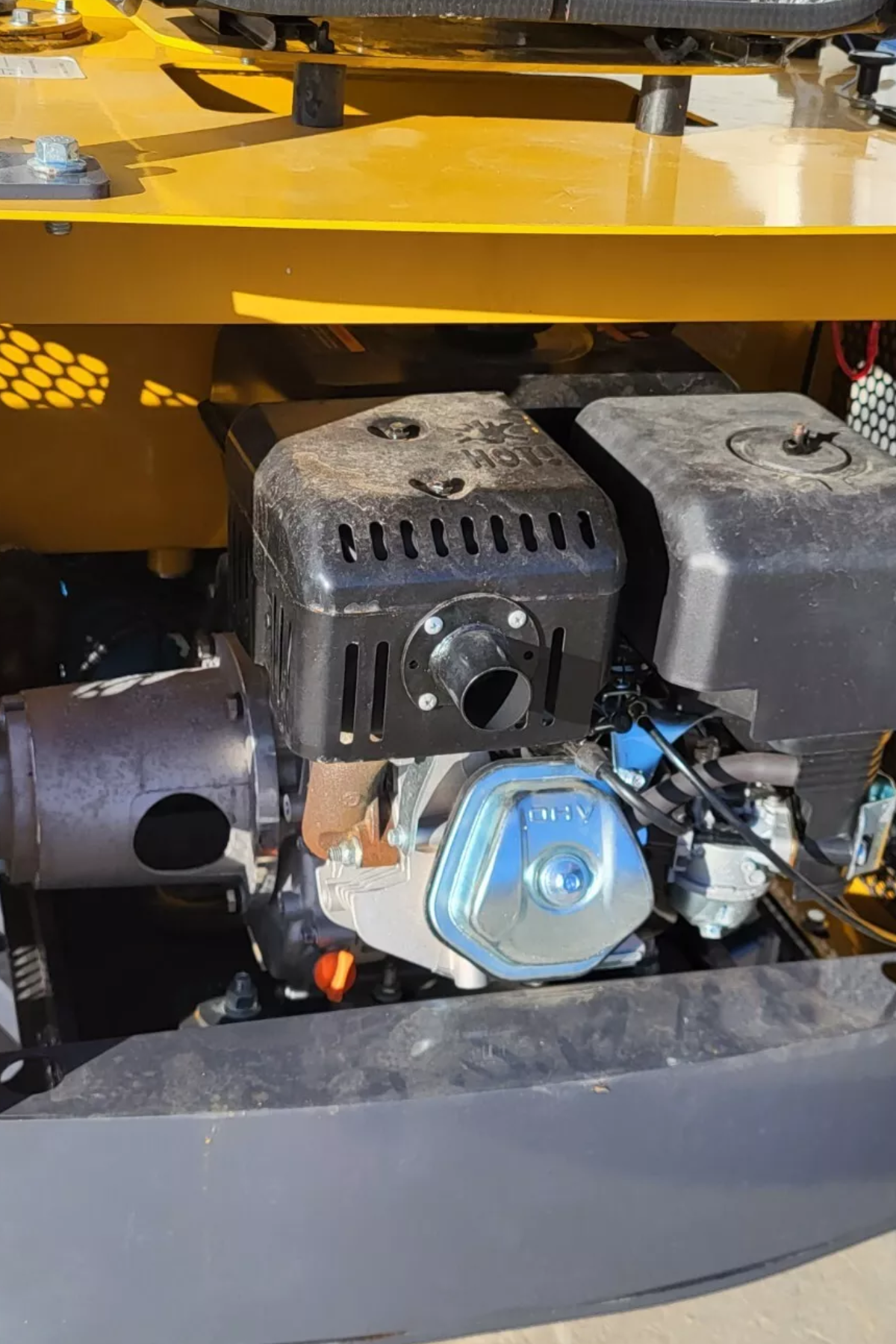

The AGT MX12R 1-Ton Mini Excavator digs to 69.45 inches (5.79 ft) with a 121.26-inch digging radius and a 74.8-inch unloading height. Its engine produces 9.8 kW (13.3 PS).It comes with a 14-inch digging bucket and a fixed thumb, rides on 7-inch rubber tracks, and is plumbed for auxiliary hydraulics.
- Fixed thumb Grip rock, roots, and debris.
- 8-way valve North multi-way control valve.
- 7-inch rubber tracks With BM6-310 travel motors.
Fixed thumb
Fixed thumb: Grip rock, roots, and debris. 8-way valve: North multi-way control valve.
7-inch rubber tracks
7-inch rubber tracks: With BM6-310 travel motors.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Max power | 9.8 kW (13.3 PS) |
|---|---|
| Fuel tank | 1.74 gal |
| Max digging depth | 69.45 in |
| Max digging radius | 121.26 in |
| Max digging height | 105.12 in |
| Max unloading height | 74.8 in |
| Bucket | 14 in wide |
| Thumb | Fixed thumb |
| Auxiliary hydraulics | Plumbed |
| Hydraulic tank | 4.7 gal |
| Main pump flow | 21.6 L/min |
| System pressure | 16 MPa rated and max |
| Control valve | 8-way, North |

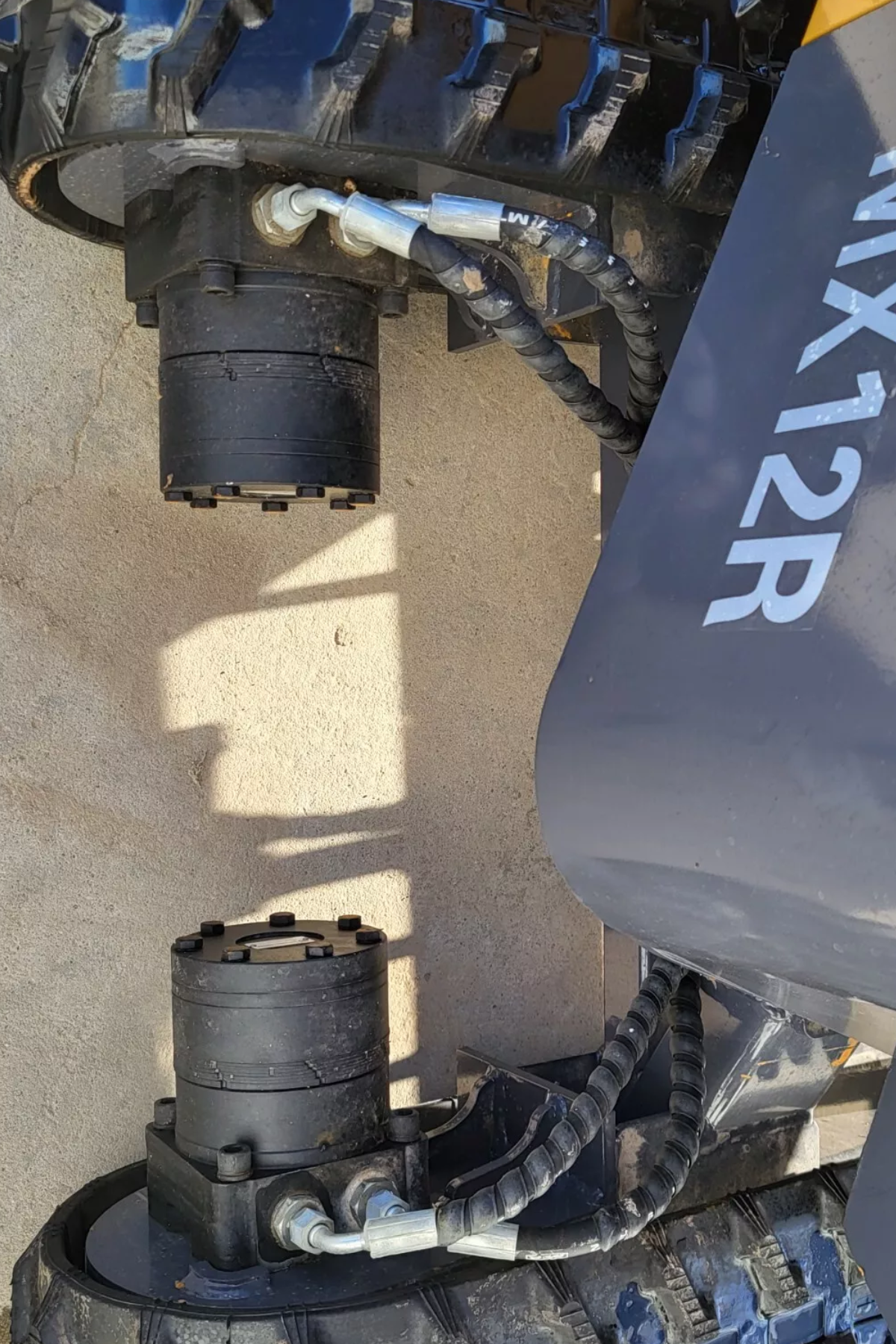

| Travel motor | BM6-310 |
| Rotary motor | BM2-250 |
| Tracks | 7 in rubber |
What’s included
These come with the machine.
- ✓ 14-inch digging bucket
- ✓ Fixed thumb
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usHow deep can the MX12R dig?
Up to 69.45 inches (5.79 ft), with a maximum digging radius of 121.26 inches.
Is the thumb hydraulic?
No. The MX12R has a fixed thumb. The machine is plumbed for auxiliary hydraulics if you want to run hydraulic attachments.
What bucket does it come with?
A 14-inch wide digging bucket.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
