AGT MH12RX 1-Ton Tight-Access Mini Excavator
- 3-year warranty
- 30-day returns
- Free delivery
Pilot controls in a 1-ton frame.
The AGT MH12RX 1-Ton Mini Excavator uses pilot controls for smooth, light-effort operation. It is powered by a 13.5 HP (8.6 kW) RATO gasoline engine and weighs 1,798 lb (816 kg).It digs to about 5 feet 4 inches, is about 39 inches wide, and rides on 7-inch rubber tracks. Auxiliary hydraulics are ready for attachments.

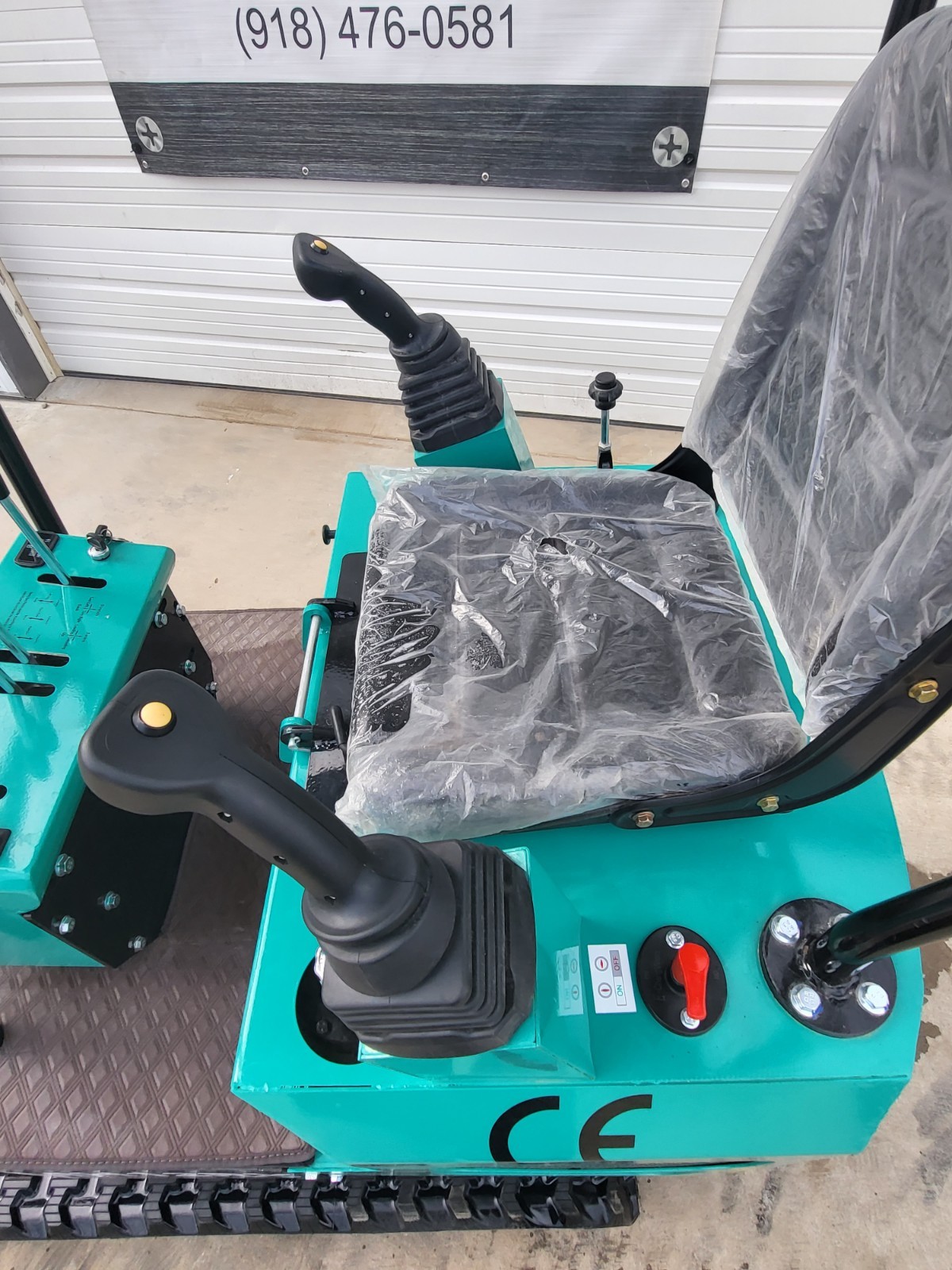

- Pilot controls For smooth, light-effort operation.
- Auxiliary hydraulics Ready for attachments.

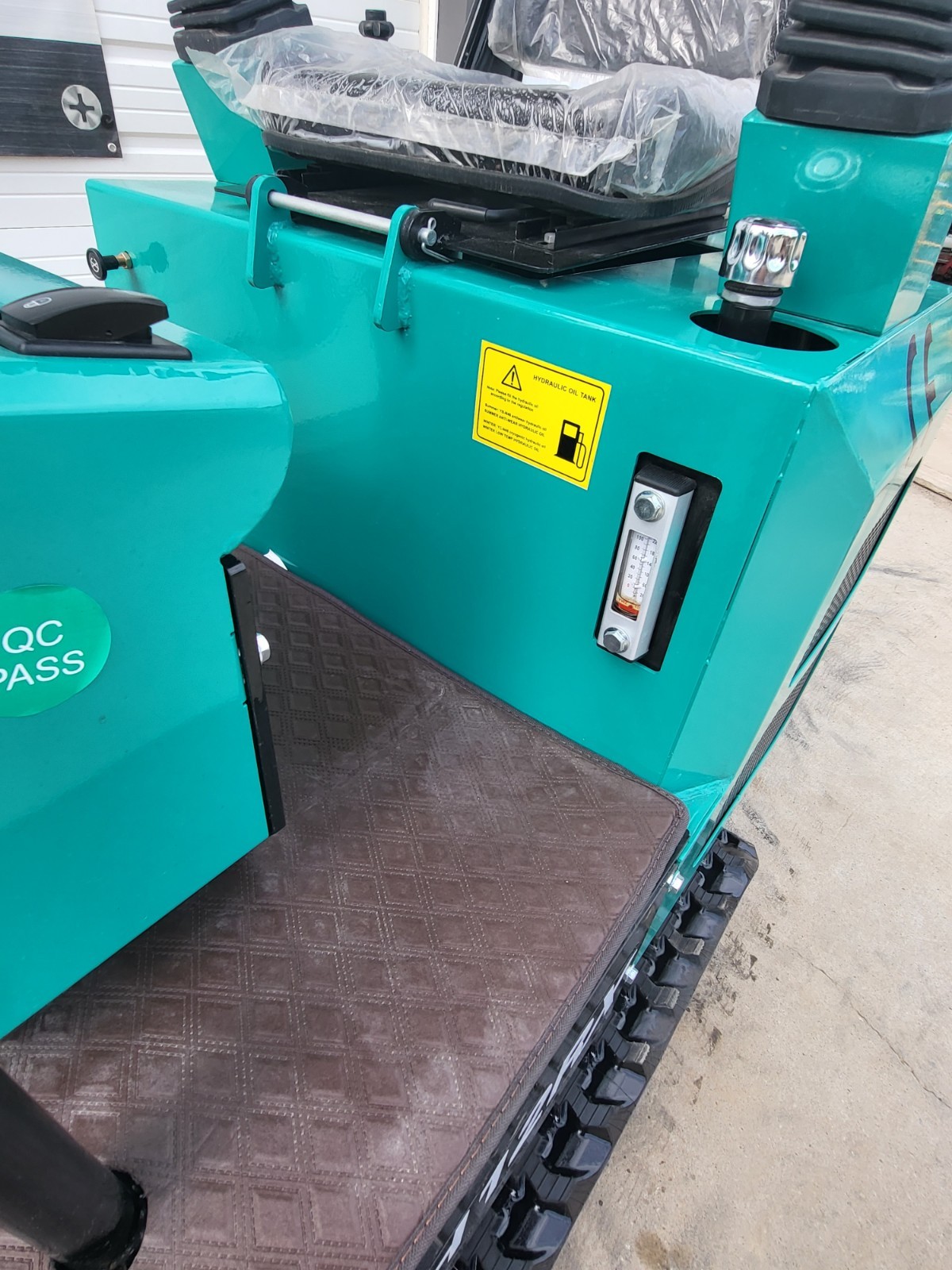

- 4.7 gal hydraulic tank With a 1.74 gal fuel tank.
Pilot controls
Pilot controls: For smooth, light-effort operation. Auxiliary hydraulics: Ready for attachments.
4.7 gal hydraulic tank
4.7 gal hydraulic tank: With a 1.74 gal fuel tank.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 1,798 lb (816 kg) |
|---|---|
| Overall width | Approx. 39 in (1.1 m) |
| Engine | RATO gasoline |
| Power | 13.5 HP (8.6 kW) |
| Fuel tank | 1.74 gal |
| Max digging depth | Approx. 5 ft 4 in (1.8 m) |
| Controls | Pilot controls |
| Hydraulic tank | 4.7 gal |
| Auxiliary hydraulics | Yes, attachment ready |
| Tracks | 7 in rubber |
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usWhat kind of controls does the MH12RX have?
Pilot controls, which take less effort to operate than mechanical lever linkages.
How wide is it?
About 39 inches (1.1 m) overall. Measure your gate and access path before ordering.
Can it run attachments?
Yes. It has auxiliary hydraulics for attachments sized for a 1-ton excavator.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
