AGT H12R 1-Ton Mini Excavator with Hydraulic Thumb
- 3-year warranty
- 30-day returns
- Free delivery
Dig, grab, and backfill without swapping tools.
The AGT H12R 1-Ton Mini Excavator comes with a hydraulic thumb already fitted, so it can grab rock, logs, and brush from day one. It runs on a 13.5 HP gasoline engine and rides on 7-inch rubber tracks.It digs to 65 inches with a 118-inch maximum digging distance and lifts up to 475 lb. A 16-inch digging bucket and a backfill blade are included, and auxiliary hydraulics are plumbed for attachments.
- Hydraulic thumb included Fitted at the factory, ready to grip.
- Plumbed for attachments Auxiliary hydraulics at the boom.
- 7-inch rubber tracks Climbs grades up to 30°.

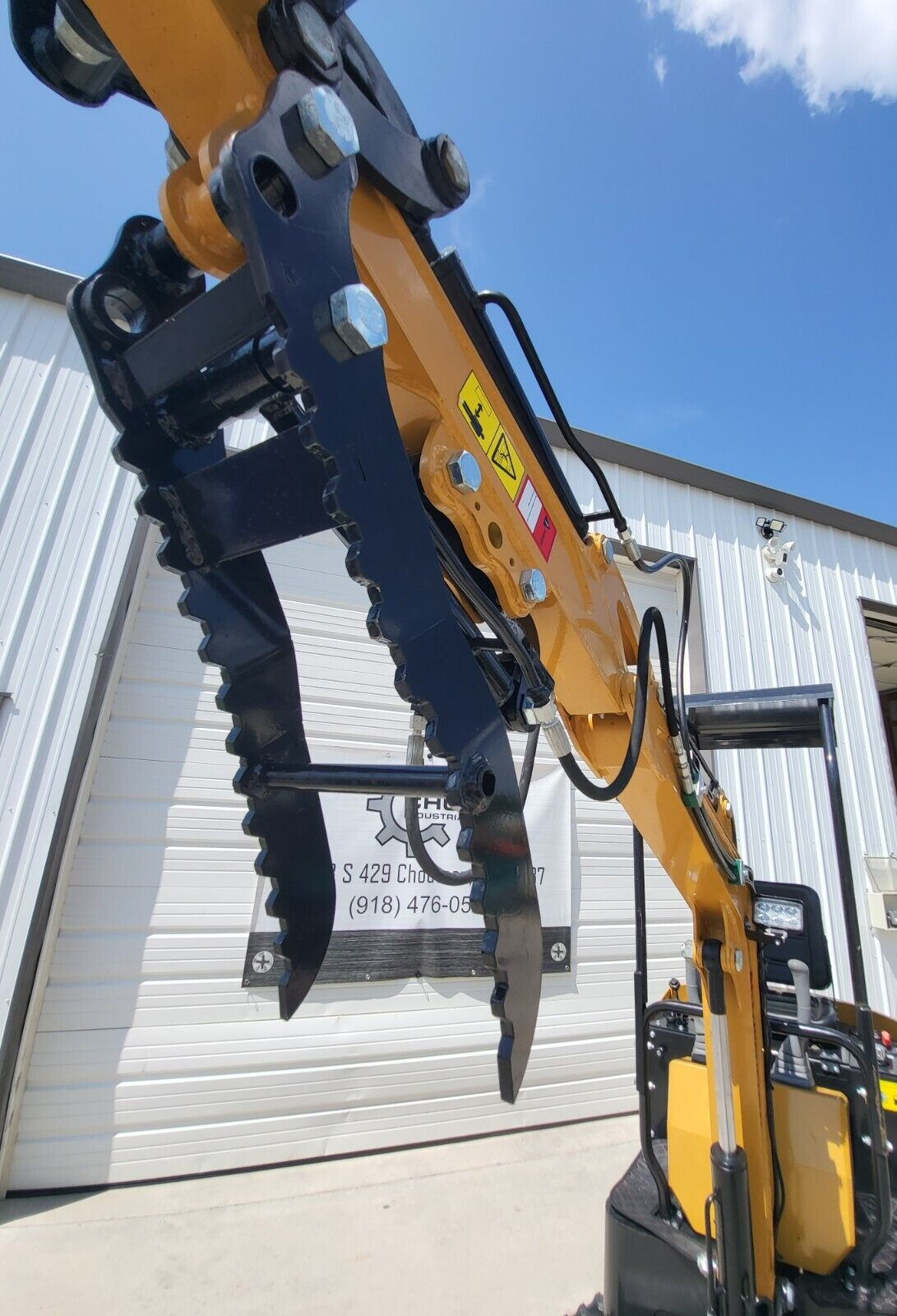

Hydraulic thumb included
Hydraulic thumb included: Fitted at the factory, ready to grip. Plumbed for attachments: Auxiliary hydraulics at the boom.

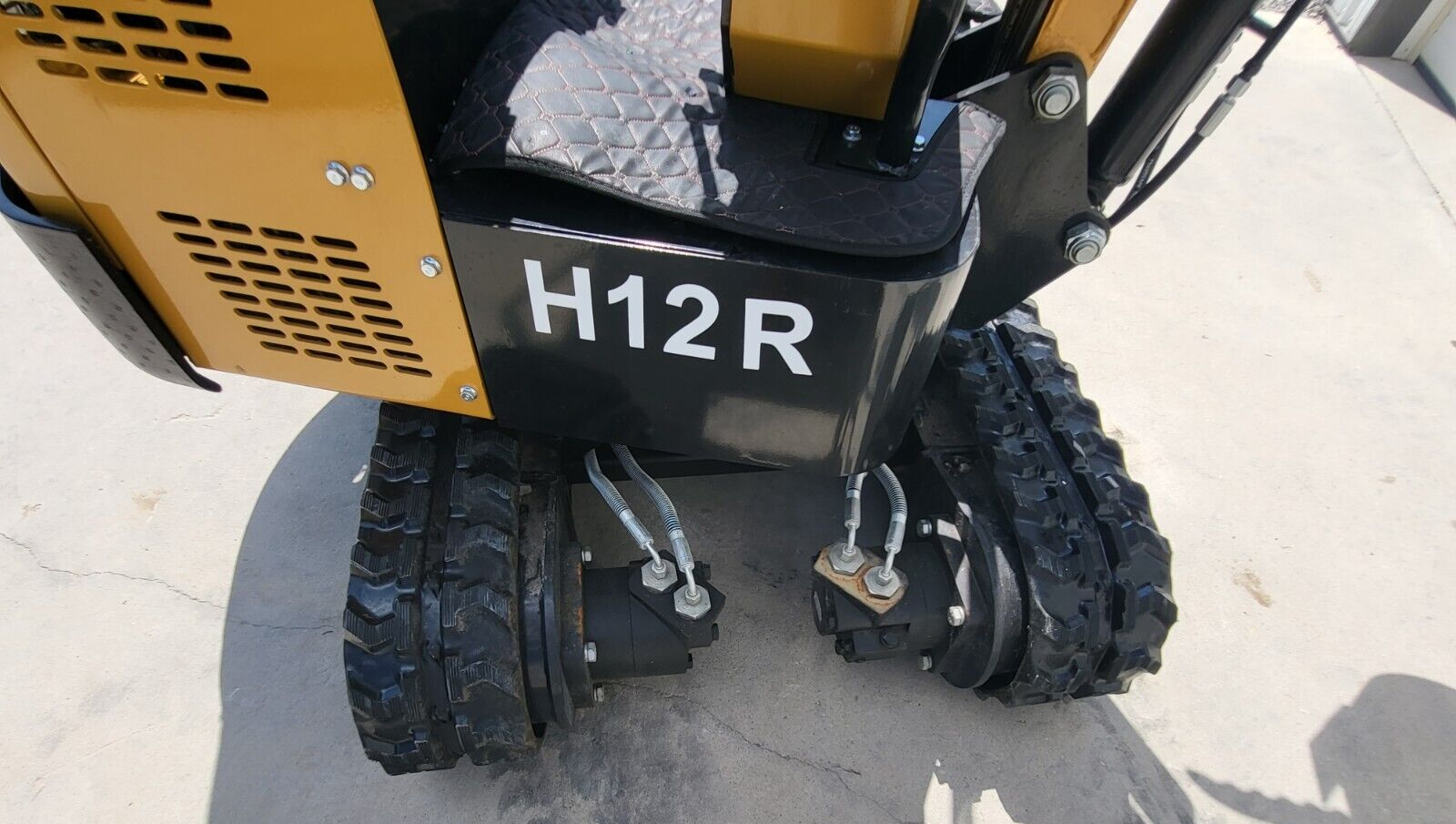

7-inch rubber tracks
7-inch rubber tracks: Climbs grades up to 30°.
Specifications
Figures for this model. If you need a detail that isn’t listed, ask us and we’ll check before you order.
Ask about this model| Operating weight | 1 ton |
|---|---|
| Engine | 13.5 HP gasoline |
| Max digging depth | 65 in |
| Max digging height | 94.5 in |
| Max digging distance | 118 in |
| Max load height | 65.7 in |
| Min rotation radius | 63.2 in |
| Lift capacity | 475 lb |
| Bucket | 16 in wide, 1.06 cu ft |
| Stick length | 2 ft 8 in |
| Thumb | Hydraulic thumb, included |
| Blade | Backfill / dozer blade |
| Auxiliary hydraulics | Yes, plumbed for attachments |
| Tracks | 7 in rubber |
| Max climbing angle | 30° |
| Shipping dimensions | 86.6 × 39.4 × 86.6 in |
What’s included
These come with the machine.
- ✓ 16-inch digging bucket
- ✓ Hydraulic thumb, fitted
- ✓ Backfill / dozer blade
Questions and answers
Can’t find what you need? Send us a message and we’ll get back to you.
Contact usHow deep can the H12R dig?
Up to 65 inches, with a maximum digging distance of 118 inches and a maximum load height of 65.7 inches.
Does it come with a thumb and bucket?
Yes. It ships with a 16-inch digging bucket and a hydraulic thumb already fitted, plus a backfill blade.
Can it run hydraulic attachments?
Yes. The machine is plumbed for auxiliary hydraulics, so it can run hydraulic attachments sized for a 1-ton excavator.
Will it fit through my gate?
The shipping footprint is 86.6 × 39.4 × 86.6 inches. Measure your gate and access path before ordering, and email us if you need a dimension that isn’t listed.
How does delivery work?
Delivery is free to residential addresses. Orders ship from our Dallas, TX warehouse, and larger items arrive by freight with a liftgate drop at your curb or driveway. You get a tracking number by email as soon as the carrier picks up your order.
